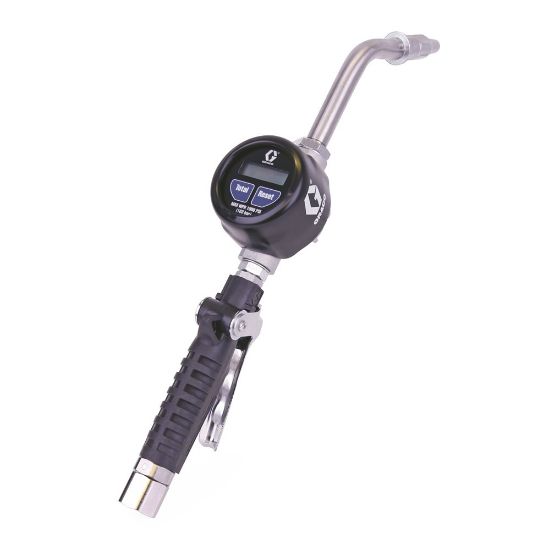

25C903

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25C903

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	8 GPM
Meter Technology	Oval Gear	Calibration Type	Factory Calibrated
Maximum Working Pressure	102 bar; 1500 psi	Outlet Thread Type	ORB
Inlet Size	1/2 Inch	Maximum Storage Temperature	185 deg F
Meter Accuracy	±0.5 %	Outlet Thread Gender	Female
Display Type	Electronic	IP Rating	69K
Trigger Protection Type	Lock Off Button	Unit of Measure	Quart;Pint;Liter;Gallon
Outlet Size	3/4 Inch	Minimum Flow Rate	0.25 gpm
Recommended Environment	Indoor/Outdoor	Inlet Thread Gender	Female
Inlet Thread Type	NPT	Minimum Operating Temperature	-22 deg F
Metering Gun Weight	3 lb	Maximum Operating Temperature	180 °F
Overall Length	13 Inch	Compatible Material	Petroleum-Based Oil;Synthetic-Based Oil;Antifreeze
Overall Width	3.5 Inch	Overall Height	5.25 Inch
Meter Pressure Loss	30 psi at 6 GPM	Trigger Lock	Locking
Model	EM8	Extension Type	Rigid
Maximum Recorded Dispense	19999	Approvals	CE
Nozzle Type	Manual
