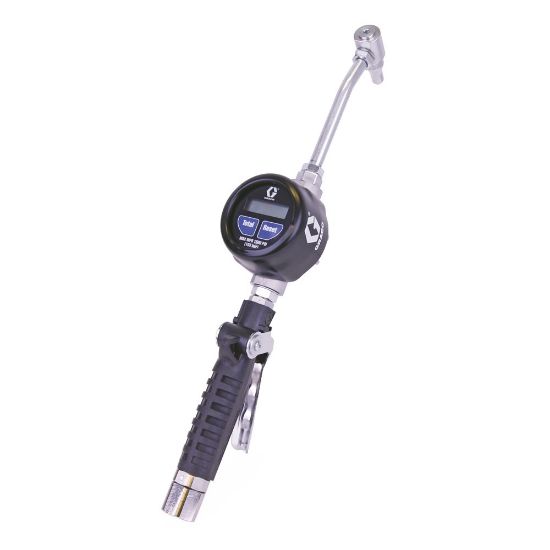

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25C905

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25C905

Products specifications

Attribute name	Attribute value
UOM	EA	Calibration Type	Factory Calibrated
Maximum Working Pressure	102 bar; 1500 psi	Maximum Flow Rate	8 GPM
Meter Technology	Oval Gear	Minimum Operating Temperature	-22 deg F
Metering Gun Weight	3 lb	Outlet Thread Type	ORB
Inlet Thread Type	NPT	Compatible Material	Petroleum-Based Oil;Synthetic-Based Oil;Antifreeze
Meter Pressure Loss	30 psi at 6 GPM	Trigger Lock	Locking
Inlet Thread Gender	Female	Recommended Environment	Indoor/Outdoor
Minimum Flow Rate	0.25 gpm	Nozzle Type	Manual
Approvals	CE	Overall Height	5.25 Inch
Overall Width	3.5 Inch	Maximum Recorded Dispense	19999
Overall Length	13 Inch	Maximum Operating Temperature	180 °F
Display Type	Electronic	Outlet Size	3/4 Inch
Meter Accuracy	±0.5 %	Maximum Storage Temperature	185 deg F
Inlet Size	1/2 Inch	IP Rating	69K
Trigger Protection Type	Lock Off Button	Outlet Thread Gender	Female
Unit of Measure	Quart;Pint;Liter;Gallon	Extension Type	Rigid
Model	EM8
