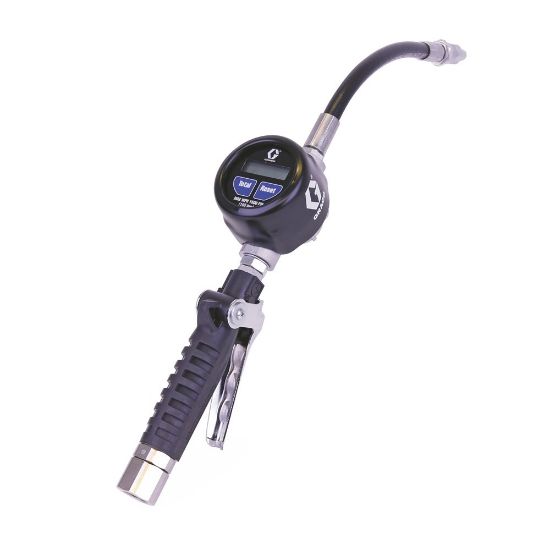

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25C908

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25C908

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	102 bar; 1500 psi
Calibration Type	Factory Calibrated	Meter Technology	Oval Gear
Maximum Flow Rate	8 GPM	Inlet Thread Gender	Female
Minimum Flow Rate	0.25 gpm	Meter Pressure Loss	30 psi at 6 GPM
Recommended Environment	Indoor/Outdoor	Metering Gun Weight	3 lb
Extension Type	Flexible	Minimum Operating Temperature	-22 deg F
Overall Length	13 Inch	Maximum Operating Temperature	180 °F
Nozzle Type	Manual	Maximum Recorded Dispense	19999
Approvals	CE	Overall Width	3.5 Inch
Trigger Lock	Locking	Overall Height	5.25 Inch
Compatible Material	Petroleum-Based Oil;Synthetic-Based Oil;Antifreeze	Unit of Measure	Quart;Pint;Liter;Gallon
Maximum Storage Temperature	185 deg F	IP Rating	69K
Model	EM8	Inlet Thread Type	NPT
Outlet Thread Type	ORB	Inlet Size	1/2 Inch
Outlet Size	3/4 Inch	Trigger Protection Type	Lock Off Button
Outlet Thread Gender	Female	Meter Accuracy	±0.5 %
Display Type	Electronic
