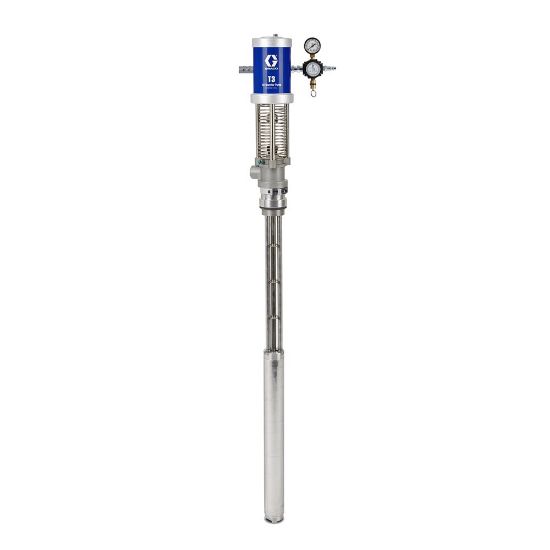

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25D295

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25D295

Products specifications

Attribute name	Attribute value
Weight	22 lb	Series	Carbon Steel
Maximum Working Pressure	315 psi	Cycles Per Gallon	30
Package Options	Air Supply & Supply Hose	Maximum Air Inlet Pressure	100 psi
Air Inlet Thread Type	NPT	Fluid Outlet Thread Type	NPT
Model	T3	Air Inlet Size	1/4 Inch
Air Inlet Thread Gender	Female	Sound Power Level	82.8 dB(A)
Fluid Outlet Size	3/4 Inch	Pump Ratio	3:1
Sound Pressure Level	72.9 dB(A)	Fluid Outlet Thread Gender	Female
Maximum Operating Temperature	190 deg F
