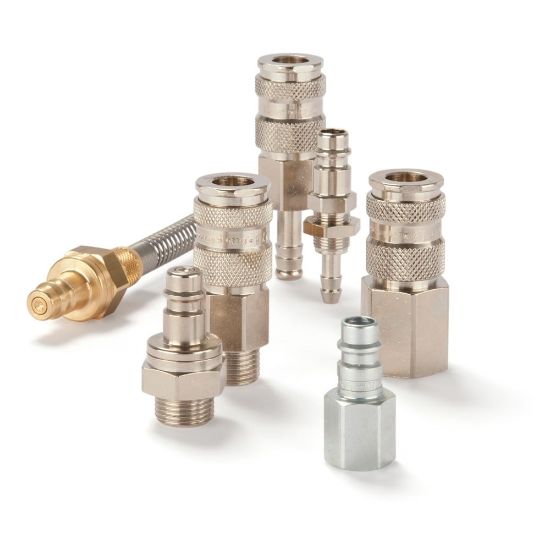

Picture of 25KSAN17SPN

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25KSAN17SPN

Parker 25KSAN17SPN | Quick Coupling | Pneumatic | Material Steel | Diameter 7.8 mm (Nominal) | Length 30 to 155 mm | Flow Rate 1800 lpm (Air) | Series 25 - Safety
Availability:
Backordered
Estimated Lead Time: 21 days
Partner Available:Backordered
SKU 25KSAN17SPN
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAShapeStraight
ApplicationSafety & RescueFlow Rate1800 lpm (Air)
Valve IncludedYesOperation TypeSleeve
TechnologyPneumaticsCompatible FittingSeries 25 Plug
Materials of ConstructionSteelStandardRoHS
For Fluid TypeAirConnection SizeNPT 3/8 Inch
Length30 to 155 mmFunctionSafety (Single Shut-Off)
Hex Size13 to 24 mmMinimum Operating Temperature-20 °C
Valve TypeUltra High Flow ValveFlow Diameter7.8 mm (Nominal)
Sleeve MaterialSteelPlating TypeNickel-Plated
Product SeriesSeries 25 - SafetyInterchange TypeEuropean Profile
Seal MaterialNBRMaximum Operating Temperature212 °F
VersionSingle Shut-OffCoupling HalfCoupler - Safety
