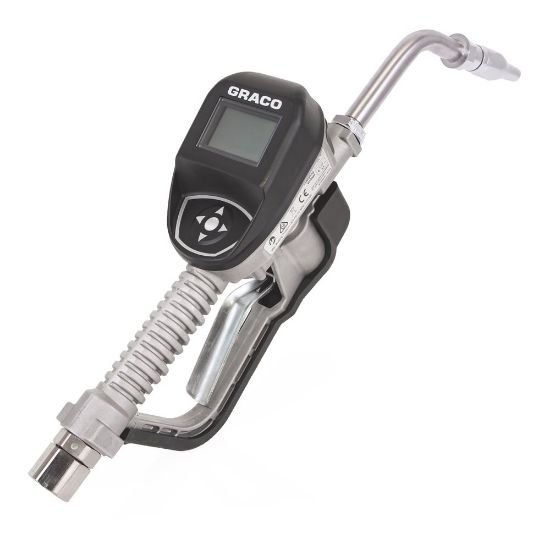

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25M404

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25M404

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	8 GPM
Maximum Working Pressure	103.4 bar; 1500 psi	Meter Technology	Oval Gear
Metering Gun Weight	5.3 lb	Model	SDM8
Maximum Storage Temperature	158 deg F	Maximum Operating Temperature	158 °F
Overall Length	13 Inch	Outlet Thread Gender	Female
Meter Accuracy	±0.5 %	Dispense Type	Manual
Display Type	Electronic	Unit of Measure	Quart;Pint;Gallon;Liter
Inlet Size	1/2 Inch	Trigger Protection Type	Guard
Extension Type	Rigid	Compatible Material	Oil;ATF
Overall Height	5.75 Inch	Maximum Recorded Dispense	9999
Overall Width	3.75 Inch	Trigger Lock	Non-Locking
Inlet Thread Type	NPT	Minimum Operating Temperature	4 deg F
Outlet Thread Type	Straight Thread O-Ring Boss	Nozzle Type	Oil Automatic Quick-Close
Inlet Thread Gender	Female	Recommended Environment	Indoor
Minimum Flow Rate	0.25 gpm
