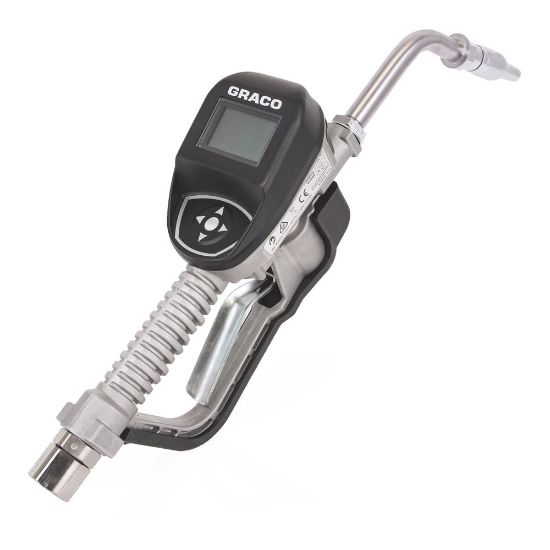

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25M405

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25M405

Products specifications

Attribute name	Attribute value
UOM	EA	Meter Technology	Oval Gear
Maximum Flow Rate	8 GPM	Maximum Working Pressure	103.4 bar; 1500 psi
Minimum Flow Rate	0.25 gpm	Maximum Recorded Dispense	9999
Overall Width	3.75 Inch	Inlet Thread Gender	Female
Overall Height	5.75 Inch	Trigger Lock	Non-Locking
Minimum Operating Temperature	4 deg F	Maximum Operating Temperature	158 °F
Overall Length	13 Inch	Recommended Environment	Indoor
Compatible Material	Oil;Antifreeze;ATF;Gear Oil	Outlet Thread Type	Straight Thread O-Ring Boss
Extension Type	Rigid	Nozzle Type	Manual
Maximum Storage Temperature	158 deg F	Metering Gun Weight	5.3 lb
Model	SDM8	Inlet Thread Type	NPT
Inlet Size	1/2 Inch	Unit of Measure	Quart;Pint;Gallon;Liter
Outlet Thread Gender	Female	Dispense Type	Manual
Display Type	Electronic	Meter Accuracy	±0.5 %
Trigger Protection Type	Guard
