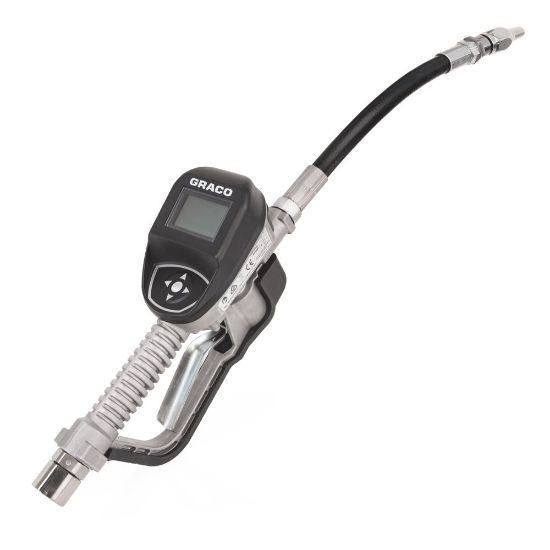

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25M406

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25M406

Products specifications

Attribute name	Attribute value
UOM	EA	Meter Technology	Oval Gear
Maximum Flow Rate	8 GPM	Maximum Working Pressure	103.4 bar; 1500 psi
Display Type	Electronic	Trigger Protection Type	Guard
Unit of Measure	Quart;Pint;Gallon;Liter	Compatible Material	Oil;ATF
Model	SDM8	Inlet Thread Type	NPT
Meter Accuracy	±0.5 %	Inlet Size	1/2 Inch
Dispense Type	Manual	Outlet Thread Gender	Female
Outlet Thread Type	Straight Thread O-Ring Boss	Recommended Environment	Indoor
Minimum Flow Rate	0.25 gpm	Extension Type	Flexible
Trigger Lock	Non-Locking	Nozzle Type	Oil Automatic Quick-Close
Inlet Thread Gender	Female	Overall Width	3.75 Inch
Overall Height	5.75 Inch	Maximum Recorded Dispense	9999
Maximum Storage Temperature	158 deg F	Metering Gun Weight	5.3 lb
Maximum Operating Temperature	158 °F	Minimum Operating Temperature	4 deg F
Overall Length	13 Inch
