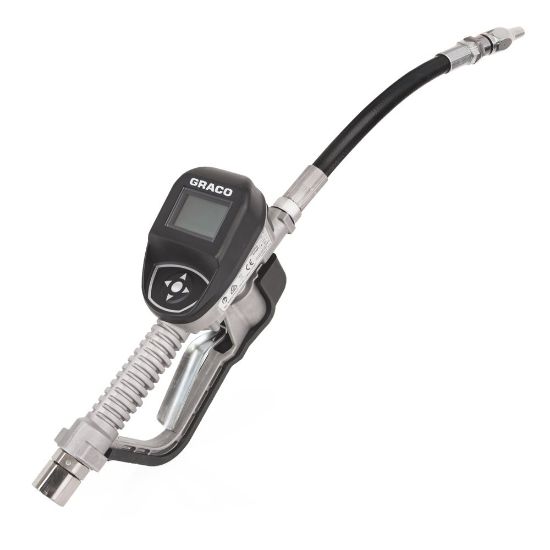

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25M407

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25M407

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	103.4 bar; 1500 psi
Maximum Flow Rate	8 GPM	Meter Technology	Oval Gear
Compatible Material	Oil;Antifreeze;ATF;Gear Oil	Minimum Operating Temperature	4 deg F
Minimum Flow Rate	0.25 gpm	Inlet Thread Gender	Female
Outlet Thread Type	Straight Thread O-Ring Boss	Recommended Environment	Indoor
Metering Gun Weight	5.3 lb	Model	SDM8
Maximum Storage Temperature	158 deg F	Maximum Operating Temperature	158 °F
Overall Length	13 Inch	Nozzle Type	Manual
Meter Accuracy	±0.5 %	Dispense Type	Manual
Outlet Thread Gender	Female	Display Type	Electronic
Unit of Measure	Quart;Pint;Gallon;Liter	Inlet Size	1/2 Inch
Trigger Protection Type	Guard	Overall Height	5.75 Inch
Maximum Recorded Dispense	9999	Trigger Lock	Non-Locking
Overall Width	3.75 Inch	Extension Type	Flexible
Inlet Thread Type	NPT
