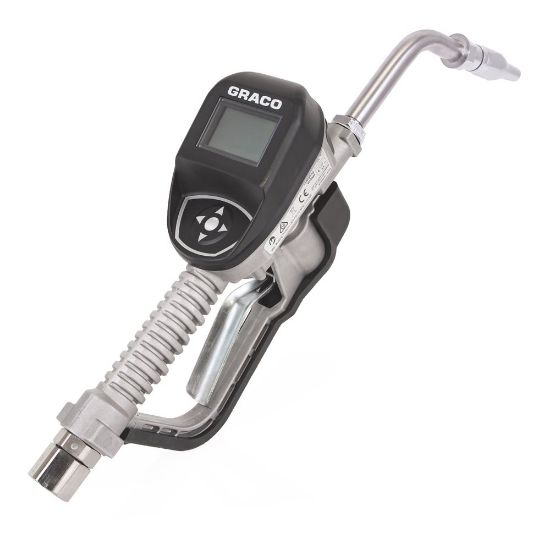

25M410

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25M410

Products specifications

Attribute name	Attribute value
UOM	EA	Meter Technology	Oval Gear
Maximum Working Pressure	103.4 bar; 1500 psi	Maximum Flow Rate	18 GPM
Inlet Size	1/2 Inch	Outlet Thread Gender	Female
Unit of Measure	Quart;Pint;Gallon;Liter	Display Type	Electronic
Dispense Type	Manual	Trigger Protection Type	Guard
Meter Accuracy	±0.5 %	Maximum Recorded Dispense	9999
Overall Width	3.75 Inch	Trigger Lock	Non-Locking
Inlet Thread Gender	Female	Overall Height	5.75 Inch
Inlet Thread Type	NPT	Minimum Operating Temperature	4 deg F
Maximum Operating Temperature	158 °F	Overall Length	13 Inch
Compatible Material	Oil;Antifreeze;ATF;Gear Oil	Recommended Environment	Indoor
Model	SDM18	Minimum Flow Rate	0.25 gpm
Outlet Thread Type	Straight Thread O-Ring Boss	Extension Type	Rigid
Nozzle Type	Manual	Maximum Storage Temperature	158 deg F
Metering Gun Weight	5.3 lb
