*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

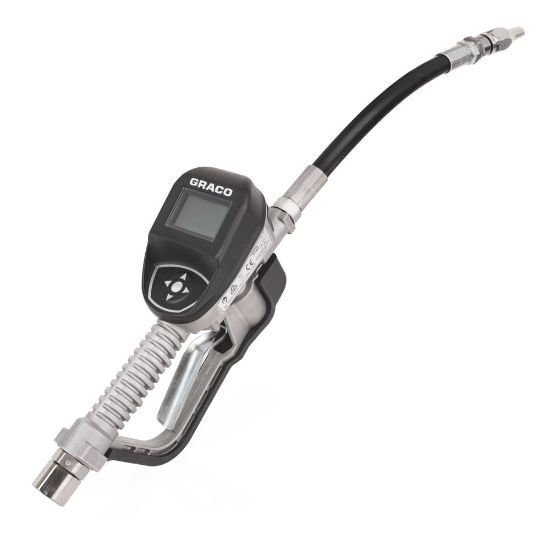

25M411

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25M411

Products specifications

Attribute name	Attribute value
UOM	EA	Meter Technology	Oval Gear
Maximum Working Pressure	103.4 bar; 1500 psi	Maximum Flow Rate	18 GPM
Overall Length	13 Inch	Maximum Operating Temperature	158 °F
Maximum Storage Temperature	158 deg F	Nozzle Type	Manual
Metering Gun Weight	5.3 lb	Minimum Operating Temperature	4 deg F
Compatible Material	Oil;Antifreeze;ATF;Gear Oil	Display Type	Electronic
Trigger Protection Type	Guard	Unit of Measure	Quart;Pint;Gallon;Liter
Inlet Thread Type	NPT	Inlet Size	1/2 Inch
Meter Accuracy	±0.5 %	Dispense Type	Manual
Outlet Thread Gender	Female	Outlet Thread Type	Straight Thread O-Ring Boss
Recommended Environment	Indoor	Minimum Flow Rate	0.25 gpm
Model	SDM18	Extension Type	Flexible
Trigger Lock	Non-Locking	Inlet Thread Gender	Female
Overall Width	3.75 Inch	Overall Height	5.75 Inch
Maximum Recorded Dispense	9999
