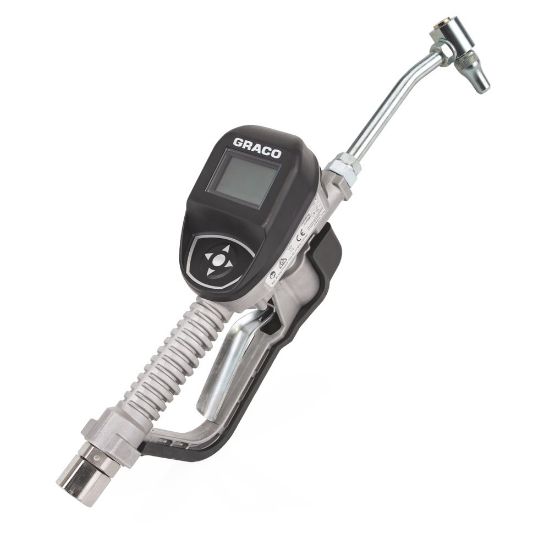

25M413

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25M413

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	103.4 bar; 1500 psi
Maximum Flow Rate	8 GPM	Meter Technology	Oval Gear
Overall Width	3.75 Inch	Overall Height	5.75 Inch
Trigger Lock	Non-Locking	Inlet Thread Type	NPT
Compatible Material	Gear Oil;Oil;ATF	Minimum Flow Rate	0.25 gpm
Maximum Recorded Dispense	9999	Inlet Thread Gender	Female
Outlet Thread Type	Straight Thread O-Ring Boss	Recommended Environment	Indoor
Metering Gun Weight	5.3 lb	Model	SDM8
Nozzle Type	Manual	Maximum Storage Temperature	158 deg F
Overall Length	13 Inch	Maximum Operating Temperature	158 °F
Minimum Operating Temperature	4 deg F	Meter Accuracy	±0.5 %
Outlet Thread Gender	Female	Display Type	Electronic
Inlet Size	1/2 Inch	Unit of Measure	Quart;Pint;Gallon;Liter
Dispense Type	Manual	Trigger Protection Type	Guard
Extension Type	Rigid
