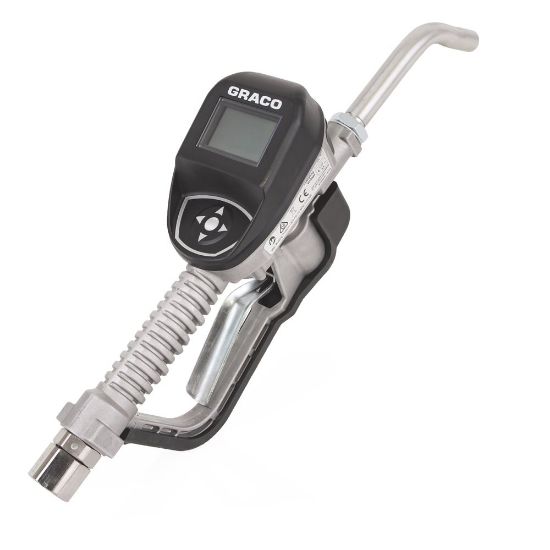

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

25M415

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25M415

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	8 GPM
Meter Technology	Oval Gear	Maximum Working Pressure	103.4 bar; 1500 psi
Compatible Material	Windshield Washer Fluid	Model	SDM8
Metering Gun Weight	5.3 lb	Maximum Operating Temperature	158 °F
Maximum Storage Temperature	158 deg F	Inlet Size	1/2 Inch
Meter Accuracy	±0.5 %	Unit of Measure	Quart;Pint;Gallon;Liter
Outlet Thread Gender	Female	Dispense Type	Manual
Extension Type	Rigid	Display Type	Electronic
Trigger Protection Type	Guard	Inlet Thread Gender	Female
Nozzle Type	Rigid	Maximum Recorded Dispense	9999
Overall Width	3.75 Inch	Trigger Lock	Non-Locking
Overall Height	5.75 Inch	Inlet Thread Type	NPT
Minimum Operating Temperature	4 deg F	Overall Length	13 Inch
Recommended Environment	Indoor	Minimum Flow Rate	0.25 gpm
Outlet Thread Type	Straight Thread O-Ring Boss
