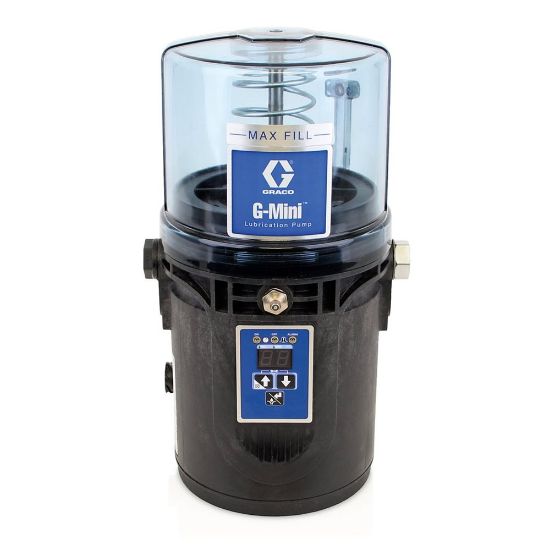

25R801

Name: 25R801
SKU: 25R801
Price: 1085.00 USD
Availability: LimitedAvailability

Manufacturer: Graco

Availability:

1 Limited Stock

Olivette, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 25R801

$1,085.00/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
Type	Electric Piston Pump	Maximum Working Pressure	4061 PSI
Maximum Flow Rate	3 ci/min	Standard	CE, EAC
Minimum Overall Height	12.2 Inch	No. of Pump Elements	Up to 2
No. of Sensor Inputs	1	Compatible Metering Device	Series Progressive
Minimum Voltage	18 VDC	Overall Depth	6.57 Inch
Compatible Material	Grease	IP Rating	IP69K
Fluid Inlet Type	Zerk Fitting to Fill Reservoir	Maximum Operating Temperature	158 °F
Minimum Operating Temperature	5 °F	Voltage	24 VDC
Fluid Outlet Size	1/4 Inch	NLGI Grade	#2
Reservoir Size	1 L	Fluid Outlet Thread Gender	Female
Control Options	Internal Controller	Fluid Outlet Type	NPSF
Power Connection Type	CPC	Maximum Voltage	32 VDC
Overall Width	6.97 Inch
