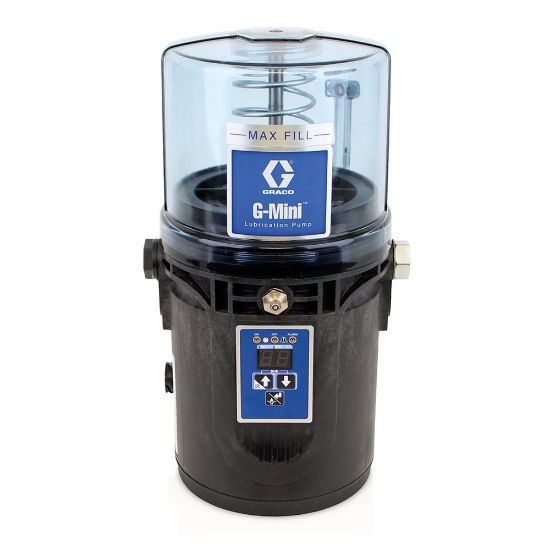

25R808

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25R808

Products specifications

Attribute name	Attribute value
Weight	8.8 lb	Maximum Working Pressure	4061 psi
Overall Height	10.9 Inch	Minimum Operating Temperature	5 deg F
Model	G-Mini	Approvals	CE, EAC
Fluid Outlet Size	1/4 Inch	Number of Sensor Inputs	1
Number of Pump Elements	Up to 2	Maximum Voltage	32 VDC
Overall Width	6.97 Inch	Fluid Inlet Type	Zerk Fitting to Fill Reservoir
Minimum Voltage	18 VDC	IP Rating	IP69K
Overall Depth	6.57 Inch	Reservoir Size	0.5 L
Maximum NLGI Grade	#2	Power Connection Type	CPC
Fluid Outlet Thread Type	NPSF	Maximum Operating Temperature	158 deg F
Voltage	24 VDC	Fluid Outlet Thread Gender	Female
Control Options	Internal Controller
