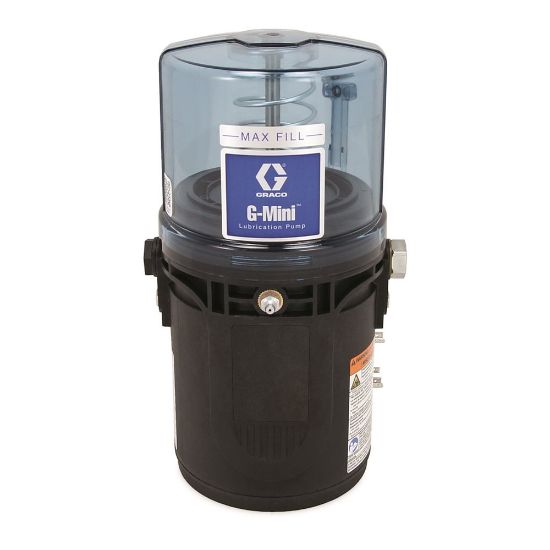

25R815

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25R815

Products specifications

Attribute name	Attribute value
Weight	8.8 lb	Maximum Working Pressure	4061 psi
Overall Height	12.2 Inch	Maximum NLGI Grade	#2
Maximum Voltage	16 VDC	Overall Width	6.97 Inch
Minimum Voltage	9 VDC	Fluid Inlet Type	Zerk Fitting to Fill Reservoir
Overall Depth	6.57 Inch	IP Rating	IP69K
Number of Pump Elements	Up to 2	Fluid Outlet Size	1/4 Inch
Fluid Outlet Thread Type	NPSF	Voltage	12 VDC
Reservoir Size	1 L	Maximum Operating Temperature	158 deg F
Fluid Outlet Thread Gender	Female	Control Options	Internal Controller
Minimum Operating Temperature	5 deg F	Power Connection Type	DIN
Number of Sensor Inputs	1	Approvals	CE, EAC
