*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

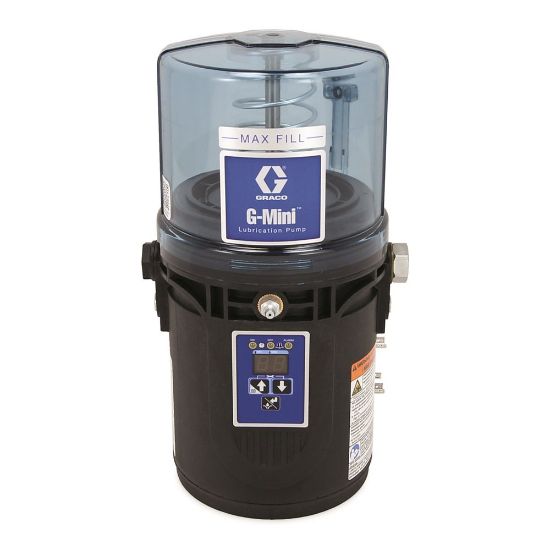

25R821

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25R821

$1,030.75/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
Weight	8.8 lb	Maximum Working Pressure	4061 psi
Minimum Operating Temperature	5 deg F	Power Connection Type	DIN
Number of Sensor Inputs	1	Approvals	CE, EAC
Model	G-Mini	Maximum NLGI Grade	#2
Maximum Voltage	32 VDC	Overall Width	6.97 Inch
Minimum Voltage	18 VDC	Fluid Inlet Type	Zerk Fitting to Fill Reservoir
Overall Height	12.2 Inch	IP Rating	IP69K
Overall Depth	6.57 Inch	Fluid Outlet Size	1/4 Inch
Number of Pump Elements	Up to 2	Fluid Outlet Thread Type	NPSF
Voltage	24 VDC	Reservoir Size	1 L
Fluid Outlet Thread Gender	Female	Control Options	Internal Controller
Maximum Operating Temperature	158 deg F
