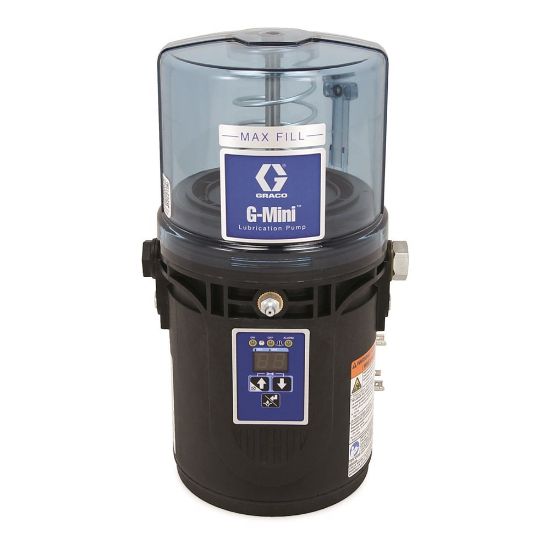

25R823

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25R823

Products specifications

Attribute name	Attribute value
Maximum Working Pressure	4061 psi	Weight	8.8 lb
Reservoir Size	1 L	Voltage	12 VDC
Control Options	Internal Controller	Fluid Outlet Thread Gender	Female
Fluid Inlet Type	Zerk Fitting to Fill Reservoir	Minimum Voltage	9 VDC
Number of Sensor Inputs	1	Number of Pump Elements	Up to 2
Fluid Outlet Size	1/4 Inch	Approvals	CE, EAC
Model	G-Mini	Maximum Operating Temperature	158 deg F
Fluid Outlet Thread Type	NPSF	Overall Width	6.97 Inch
Power Connection Type	DIN	Minimum Operating Temperature	5 deg F
Overall Height	12.2 Inch	Maximum NLGI Grade	#2
IP Rating	IP69K	Overall Depth	6.57 Inch
Maximum Voltage	16 VDC
