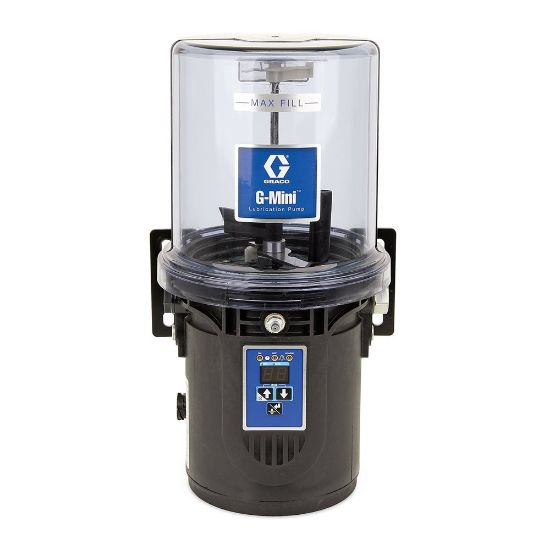

25R833

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25R833

$1,254.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
Weight	8.8 lb	Maximum Working Pressure	4061 psi
Minimum Operating Temperature	5 deg F	Number of Sensor Inputs	1
Maximum Voltage	32 VDC	Overall Width	6.97 Inch
Overall Depth	6.57 Inch	Power Connection Type	CPC
Maximum NLGI Grade	#2	Overall Height	12.2 Inch
IP Rating	IP69K	Reservoir Size	2 L
Fluid Outlet Thread Gender	Female	Fluid Inlet Type	Zerk Fitting to Fill Reservoir
Minimum Voltage	18 VDC	Fluid Outlet Size	1/4 Inch
Voltage	24 VDC	Number of Pump Elements	Up to 2
Approvals	CE, EAC	Control Options	Internal Controller
Fluid Outlet Thread Type	NPSF	Maximum Operating Temperature	158 deg F
