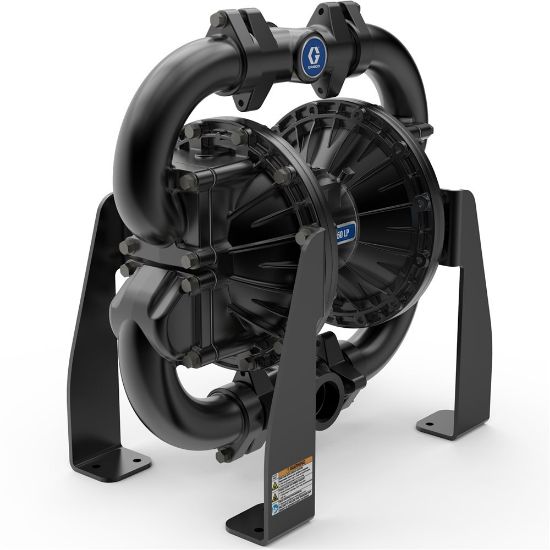

25U609

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 25U609

Products specifications

Attribute name	Attribute value
Series	2150LP	Connection Type	Threaded
Material	Aluminum	Maximum Flow Rate	150 GPM
Weight	76 lb	Type	Pneumatic
Fluid Outlet Size	2 Inch	Diaphragm Material	Buna-N
Diaphragm Compatible Material	Buna	Air Exhaust Port Thread Type	NPT
Fluid Inlet Size	2 Inch	Model	Husky
Manifold Configuration	Center Port	Air Inlet Thread Type	NPT
Maximum Solid Size	1.8 Inch	Fluid Outlet Thread Type	BSPT
Air Inlet Size	0.5 Inch	Maximum Operating Temperature	180 deg F
Minimum Operating Temperature	10 deg F	Maximum Air Consumption	175 SCFM
Maximum Cycle Rate	145 CPM	Air Exhaust Port Size	0.75 Inch
Fluid Inlet Thread Type	BSPT
