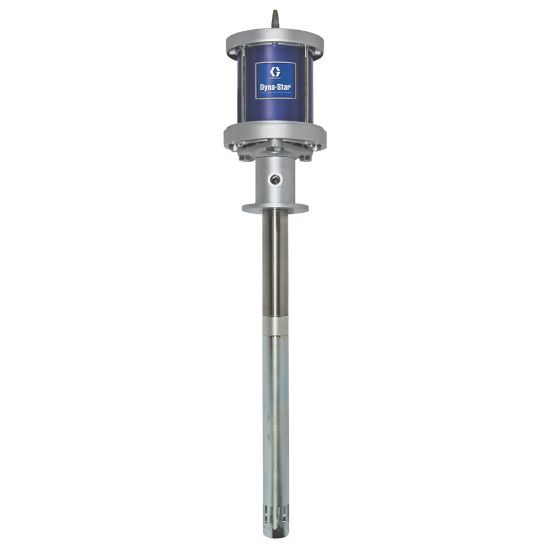

26A967

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 26A967

$10,003.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
Maximum Working Pressure	12000 psi	Piston Travel	4.75 Inch
Weight	26.8 lb	Air Motor Size	6 Inch
Series	120:1	Minimum Air Inlet Pressure	40 psi
Air Inlet Thread Type	NPT	Model	Dyna-Star
Air Inlet Thread Gender	Female	Number of Outlets	1
Fluid Outlet Size	13/16 Inch	Component Technology	Air Motor; Shovel-loading pump tube
Overall Height	43.5 Inch	Fluid Outlet Thread Type	UNC
Reservoir Size	120 lb	Pump Ratio	120 to 1
Output Per Cycle	28 Cubic cm	Maximum Air Inlet Pressure	100 psi
Lower Type	Integrated Shovel Loading	Maximum Intermittent Cycle Rate	60 CPM
Motor Type	Pneumatic	Air Inlet Size	0.5 Inch
Maximum NLGI Grade	2	Minimum Operating Temperature	-30 deg F
Number of Pump Elements	1	Approvals	CE;ATEX;EAC
Maximum Fluid Output Pressure	12000 psi	Fluid Outlet Thread Gender	Female
Air Motor Effective Diameter	6 Inch	Sound Pressure Level	70.5 dB(A)
Maximum Operating Temperature	180 deg F	Maximum Continuous Cycle Rate	60 CPM
Maximum Cycle Rate	60 CPM	Maximum Air Consumption	60 SCFM
Sound Power Level	78 dB(A)
