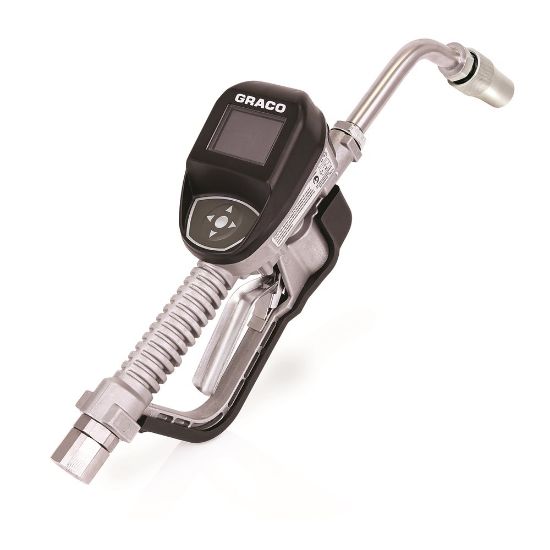

26C356

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 26C356

Products specifications

Attribute name	Attribute value
UOM	EA	Meter Technology	Oval Gear
Maximum Working Pressure	103.4 bar; 1500 psi	Maximum Flow Rate	18 GPM
Unit of Measure	Quart;Pint;Gallon;Liter	Inlet Size	1/2 Inch
Outlet Thread Gender	Female	Meter Accuracy	±0.5 %
Trigger Protection Type	Guard	Extension Type	Rigid
Display Type	Electronic	Maximum Recorded Dispense	9999
Overall Width	3.75 Inch	Inlet Thread Type	NPT
Model	SDP18	Overall Height	5.75 Inch
Inlet Thread Gender	Female	Compatible Material	Oil;Antifreeze;ATF;Gear Oil
Minimum Operating Temperature	4 deg F	Recommended Environment	Indoor
Minimum Flow Rate	0.25 gpm	Outlet Thread Type	Straight Thread O-Ring Boss
Trigger Lock	Locking	Metering Gun Weight	5.3 lb
Overall Length	13 Inch	Maximum Storage Temperature	158 deg F
Nozzle Type	Manual	Maximum Operating Temperature	158 °F
Dispense Type	Preset
