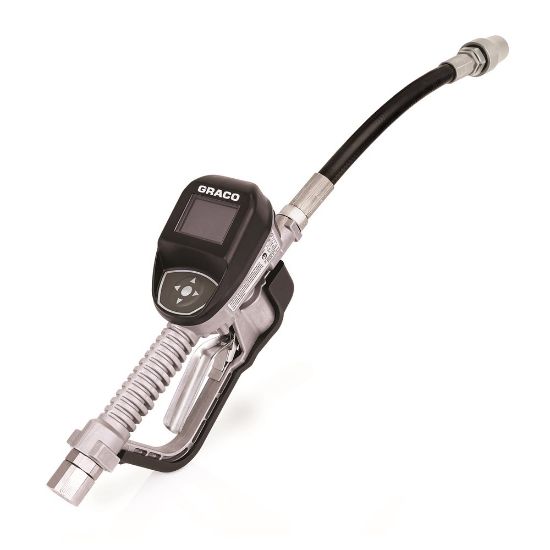

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

26C357

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 26C357

Products specifications

Attribute name	Attribute value
UOM	EA	Meter Technology	Oval Gear
Maximum Working Pressure	103.4 bar; 1500 psi	Maximum Flow Rate	18 GPM
Outlet Thread Type	Straight Thread O-Ring Boss	Minimum Operating Temperature	4 deg F
Maximum Operating Temperature	158 °F	Trigger Lock	Locking
Overall Length	13 Inch	Compatible Material	Oil;Antifreeze;ATF;Gear Oil
Dispense Type	Preset	Nozzle Type	Manual
Maximum Storage Temperature	158 deg F	Metering Gun Weight	5.3 lb
Display Type	Electronic	Inlet Thread Type	NPT
Inlet Size	1/2 Inch	Meter Accuracy	±0.5 %
Trigger Protection Type	Guard	Unit of Measure	Quart;Pint;Gallon;Liter
Outlet Thread Gender	Female	Extension Type	Flexible
Model	SDP18	Inlet Thread Gender	Female
Overall Height	5.75 Inch	Recommended Environment	Indoor
Minimum Flow Rate	0.25 gpm	Maximum Recorded Dispense	9999
Overall Width	3.75 Inch
