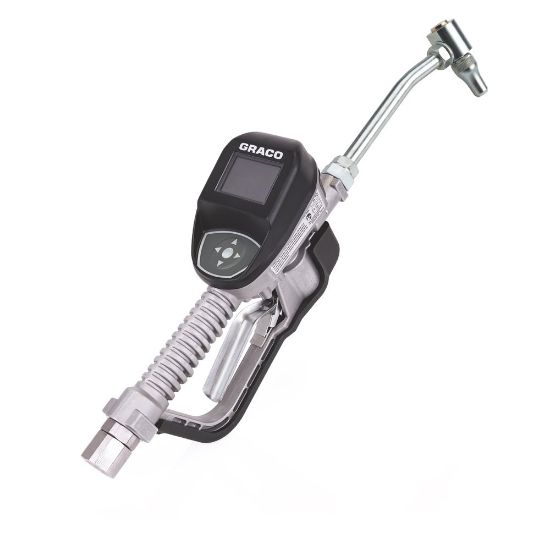

26C358

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 26C358

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	103.4 bar; 1500 psi
Maximum Flow Rate	8 GPM	Meter Technology	Oval Gear
Outlet Thread Gender	Female	Overall Height	5.75 Inch
Meter Accuracy	±0.5 %	Compatible Material	Gear Oil;Oil;ATF
Inlet Size	1/2 Inch	Inlet Thread Type	NPT
Recommended Environment	Indoor	Minimum Flow Rate	0.25 gpm
Overall Width	3.75 Inch	Trigger Lock	Locking
Maximum Recorded Dispense	9999	Outlet Thread Type	Straight Thread O-Ring Boss
Inlet Thread Gender	Female	Maximum Storage Temperature	158 deg F
Nozzle Type	Manual	Overall Length	13 Inch
Metering Gun Weight	5.3 lb	Maximum Operating Temperature	158 °F
Model	SDP8	Dispense Type	Preset
Minimum Operating Temperature	4 deg F	Extension Type	Rigid
Trigger Protection Type	Guard	Unit of Measure	Quart;Pint;Gallon;Liter
Display Type	Electronic
