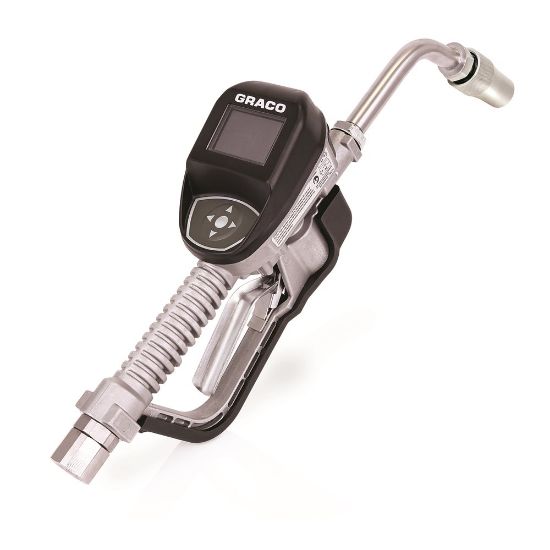

26C360

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 26C360

Products specifications

Attribute name	Attribute value
UOM	EA	Meter Technology	Oval Gear
Maximum Working Pressure	103.4 bar; 1500 psi	Maximum Flow Rate	18 GPM
Metering Gun Weight	5.3 lb	Overall Length	13 Inch
Maximum Storage Temperature	158 deg F	Nozzle Type	Manual
Maximum Operating Temperature	158 °F	Dispense Type	Preset
Unit of Measure	Quart;Pint;Gallon;Liter	Trigger Protection Type	Guard
Meter Accuracy	±0.5 %	Outlet Thread Gender	Female
Extension Type	Rigid	Display Type	Electronic
Maximum Recorded Dispense	9999	Overall Width	3.75 Inch
Inlet Thread Type	NPT	Model	SDP18
Overall Height	5.75 Inch	Compatible Material	Oil;Antifreeze;ATF;Gear Oil
Inlet Thread Gender	Female	Minimum Operating Temperature	4 deg F
Outlet Thread Type	Straight Thread O-Ring Boss	Recommended Environment	Indoor
Minimum Flow Rate	0.25 gpm	Inlet Size	3/4 Inch
Trigger Lock	Locking
