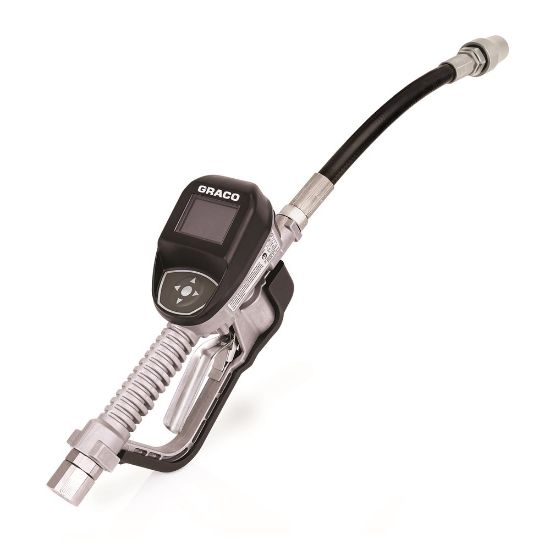

26C361

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 26C361

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	18 GPM
Meter Technology	Oval Gear	Maximum Working Pressure	103.4 bar; 1500 psi
Inlet Size	3/4 Inch	Inlet Thread Type	NPT
Extension Type	Flexible	Model	SDP18
Inlet Thread Gender	Female	Overall Height	5.75 Inch
Maximum Recorded Dispense	9999	Minimum Flow Rate	0.25 gpm
Overall Width	3.75 Inch	Outlet Thread Type	Straight Thread O-Ring Boss
Trigger Lock	Locking	Compatible Material	Oil;Antifreeze;ATF;Gear Oil
Maximum Operating Temperature	158 °F	Minimum Operating Temperature	4 deg F
Recommended Environment	Indoor	Overall Length	13 Inch
Dispense Type	Preset	Nozzle Type	Manual
Maximum Storage Temperature	158 deg F	Metering Gun Weight	5.3 lb
Display Type	Electronic	Trigger Protection Type	Guard
Meter Accuracy	±0.5 %	Outlet Thread Gender	Female
Unit of Measure	Quart;Pint;Gallon;Liter
