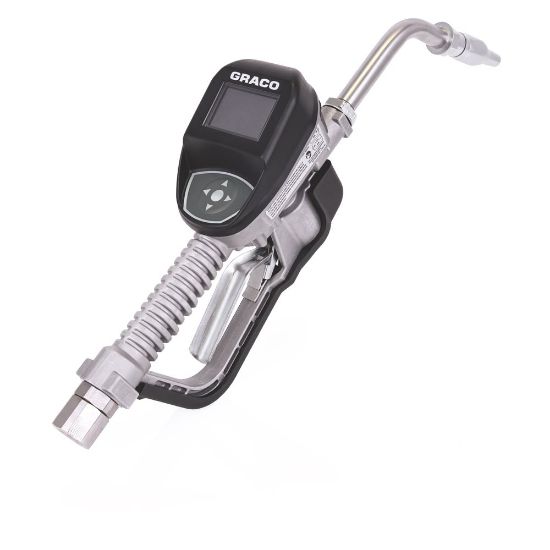

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

26C384

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 26C384

Products specifications

Attribute name	Attribute value
UOM	EA	Meter Technology	Oval Gear
Maximum Working Pressure	103.4 bar; 1500 psi	Maximum Flow Rate	8 GPM
Extension Type	Rigid	Unit of Measure	Quart;Pint;Gallon;Liter
Compatible Material	Oil;ATF	Display Type	Electronic
Trigger Protection Type	Guard	Outlet Thread Gender	Female
Inlet Size	1/2 Inch	Inlet Thread Type	NPT
Meter Accuracy	±0.5 %	Overall Width	3.75 Inch
Recommended Environment	Indoor	Overall Height	5.75 Inch
Trigger Lock	Locking	Minimum Flow Rate	0.25 gpm
Maximum Recorded Dispense	9999	Nozzle Type	Oil Automatic Quick-Close
Inlet Thread Gender	Female	Outlet Thread Type	Straight Thread O-Ring Boss
Overall Length	13 Inch	Maximum Operating Temperature	158 °F
Maximum Storage Temperature	158 deg F	Minimum Operating Temperature	4 deg F
Metering Gun Weight	5.3 lb	Model	SDP8
Dispense Type	Preset
