*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

273247

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 273247

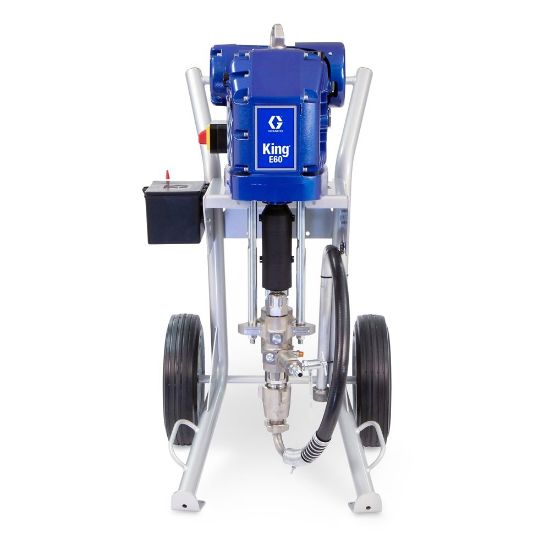

The Graco King E-series Electric Airless Sprayer is for protective coatings and select models have been approved for hazardous locations. The King E-series operates on a more reliable, convenient and available electric power source, which removes job site reliance on compressed air. Furthermore, electric technology reduces pulsation and eliminates motor icing, making your jobs run smoother every single time.

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Hose Length	50 ft
Minimum Generator Power	5 kW	Maximum Flow Rate	0.7 gpm
Series	E60	Minimum Hose Inside Diameter	0.375 Inch
Inlet Paint Strainer	8 Mesh;16 Mesh	Maximum Working Pressure	6000 PSI
Number of Guns	1-2	Frame Configuration	Heavy-Duty Cart
Phase	1	Lower Type	115cc Xtreme Duty Lower
Fluid Outlet Thread Type	NPT	Maximum Hose Length	210 ft
Pump Type	Pneumatic Piston	Outlet Paint Filter	60 Mesh
Fluid Outlet Thread Gender	Male	Motor Type	Electric;Hazardous Locations
Maximum Sound Pressure Level	77 dB(A)	Maximum Tip Size	0.021 Inch
Frequency	50/60 Hz	Pressure Control Type	Electric Control Knob
Control Type	Pressure Control Knob	Minimum Operating Temperature	23 deg F
Material Application	Protective Coatings	Fluid Inlet Thread Type	NPT
Pump Ratio	60:1 (6000 psi)	Maximum Operating Temperature	120 deg F
Fluid Inlet Thread Gender	Male	Pump Sleeve Material	Hard Chrome;Stainless Steel
Fluid Inlet Size	1 Inch	Fluid Outlet Size	1/2;3/8 Inch
Power Source	Electric	Gun Included	No
Maximum Fluid Working Pressure	6000 psi	Model	King
Maximum Continuous Cycle Rate	44 CPM	Amperage	120V/25 A; 240V/15 A
Pump Rod Type	Chromex	Lower Configuration	Integrated Filter
Gun Model	No Applicator	Hose Inlet Diameter	3/8 Inch
