*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

273248

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 273248

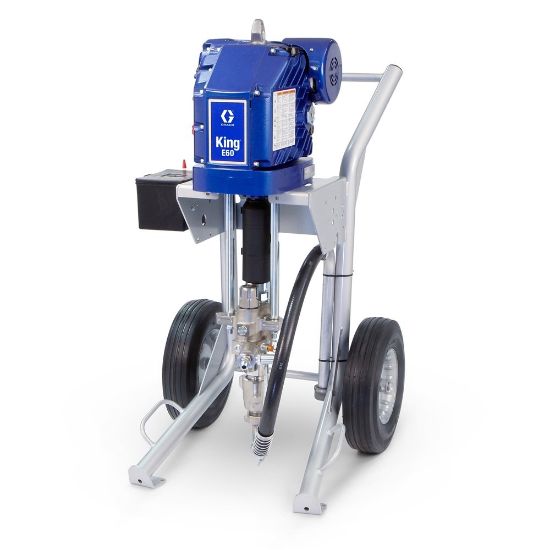

The Graco King E-series Electric Airless Sprayer is for protective coatings and select models have been approved for hazardous locations. The King E-series operates on a more reliable, convenient and available electric power source, which removes job site reliance on compressed air. Furthermore, electric technology reduces pulsation and eliminates motor icing, making your jobs run smoother every single time.

Products specifications

Attribute name	Attribute value
UOM	EA	Series	E60
Minimum Hose Inside Diameter	0.375 Inch	Minimum Generator Power	5 kW
Maximum Working Pressure	6000 PSI	Maximum Flow Rate	0.7 gpm
Minimum Hose Length	50 ft	Inlet Paint Strainer	8 Mesh;16 Mesh
Lower Configuration	Integrated Filter	Fluid Inlet Thread Gender	Male
Material Application	Protective Coatings	Fluid Inlet Thread Type	NPT
Frame Configuration	Lightweight Cart	Pump Sleeve Material	Hard Chrome;Stainless Steel
Fluid Inlet Size	1 Inch	Gun Included	Yes
Maximum Operating Temperature	120 deg F	Pump Ratio	60:1 (6000 psi)
Fluid Outlet Thread Type	NPT	Maximum Continuous Cycle Rate	44 CPM
Maximum Hose Length	210 ft	Lower Type	115cc Xtreme Duty Lower
Pump Rod Type	Chromex	Maximum Fluid Working Pressure	6000 psi
Hose Inlet Diameter	3/8 Inch	Model	King
Amperage	120V/25 A; 240V/15 A	Control Type	Pressure Control Knob
Maximum Sound Pressure Level	77 dB(A)	Number of Guns	1-2
Minimum Operating Temperature	23 deg F	Maximum Tip Size	0.021 Inch
Phase	1	Gun Model	XTR+
Power Source	Electric	Fluid Outlet Size	1/2;3/8 Inch
Fluid Outlet Thread Gender	Male	Pump Type	Pneumatic Piston
Pressure Control Type	Electric Control Knob	Outlet Paint Filter	60 Mesh
Frequency	50/60 Hz	Motor Type	Electric;Hazardous Locations
