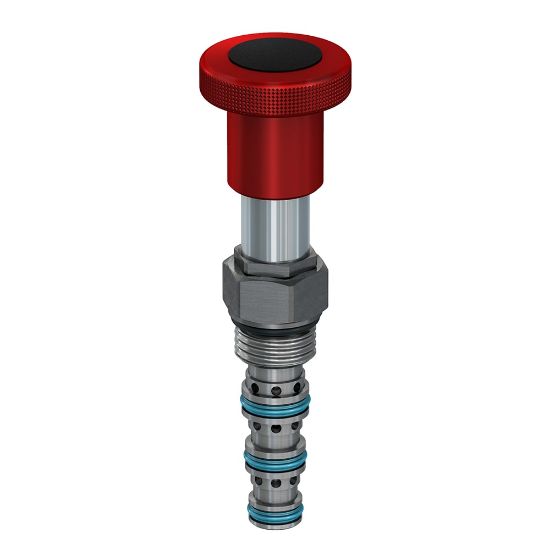

DMH085C2 - 3 Position, 4 Way Pull/Push to Shift Spool Type Manual Valve

REGIONAL - Parker’s 3-position, 4-way manual spool valves are spring centered shift by pushing and pulling with available detents and are capable of flows up to 19 lpm (5 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Backordered Estimated Lead Time: 421 days
Partner Available:	Backordered

SKU DMH085C2

$153.93/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Detents	No	Configuration	Open Center
Flow Rate	4 GAL/MIN, 15 L/MIN	Body Material	n/a
Maximum Operating Pressure	5000 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Operation Type	Manual
Weight	0.12 kg	Leak Rate	n/a
Maximum Inlet Pressure Rating	5000 psi	Flow Rate	4 Gal/min
Seal Material	D-Ring (Standard)	Cavity Size	C08-4
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Maximum Operating Temperature	+93 °C
Function	Spool Type	Detents	No
Configuration	Open Center	Actuation Type	Push/Pull to shift
Maximum Flow Rate	17 L/min	Installation Torque	36 lb-ft
Maximum Tank Pressure	35 bar	Force	11 lbf
