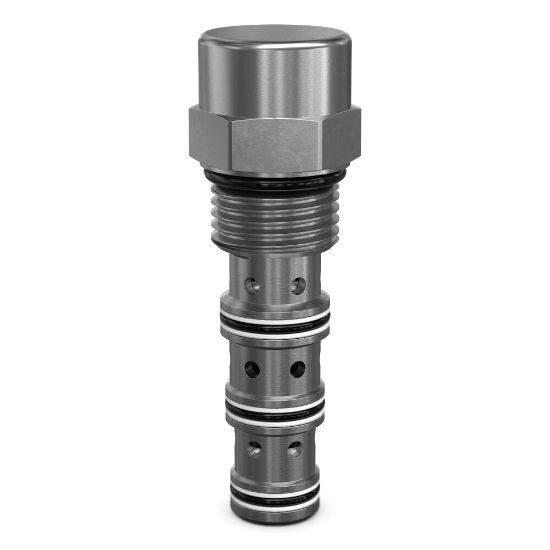

DH103A - 3 Way Pilot Operated Directional Control Valves

3-way Pilot Operated, Threaded Cartridge Spool Valves used in normally closed or normally open directional control three way circuits requiring remote pilot actuation.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU DH103A

$88.96/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Switching Pressure	80 PSI, 5.5 BAR
Seal Material	Nitrile	Sealed Pilot Included	N/A
Flow Rate	10 GAL/MIN, 38 L/MIN	Flow Direction	2-3 Neutral, 3-4 Piloted
Configuration	Normally Open	Cavity Size	C10-4
Pilot Location	External	Actuation Type	Pilot to shift
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Flow Direction	2-3 Neutral, 3-4 Piloted
Maximum Flow Rate	38 L/min	Flow Rate	38 L/min
Sealed Pilot Included	N/A	Maximum Operating Pressure	240 bar
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Valve Material	All parts steel. All operating parts hardened steel
Standard Flow Rate Setting	N/A Gal/min	Weight	0.5 lb
Body Material	n/a	Maximum Inlet Pressure Rating	3500 psi
Leak Rate	50 @ 3500 PSI (240 BAR) cm3/min	Installation Torque	16 lb-ft
Switching Pressure	5.5 bar	Configuration	Normally Open
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Seal Material	Nitrile
Drain Option	Vent to Atmosphere	Operation Type	Pilot Operated
Maximum Operating Temperature	+121 °C	Minimum Operating Temperature	-34 °C
Function	Directional Control
