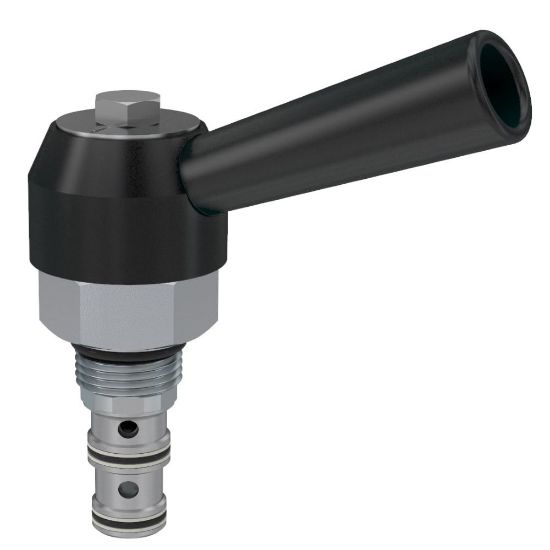

Picture of 3 Way Rotary Type Manual Valve - DM103KV

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

3 Way Rotary Type Manual Valve - DM103KV

REGIONAL - Parker’s manually operated 3-way, 2 or 3-position directional control spool valve is capable of flows up to 23 lpm (6 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.
Availability:
Backordered
SKU DM103KV
$101.14
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialFluorocarbon
DetentsN/AConfigurationKnob
Weight0.11 kgSeal MaterialFluorocarbon
Maximum Inlet Pressure Rating240 barOperating Temperature-15 to +400 °F
Actuation TypeRotaryFunctionSpool Type
Valve MaterialStem, stainless steel. All other parts hardened steel.Minimum Operating Temperature-15 °F
DivisionHydraulic Systems DivisionCavity SizeC10-3
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)ConfigurationKnob
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4Maximum Tank Pressure34.5 bar
Maximum Operating Pressure240 barDetentsN/A
Operation TypeManualBody Materialn/a
For Fluid TypeMineral-based or synthetic hydraulic fluidsInstallation Torque16 lb-ft
Flow Rate6 Gal/minRotation Angle90 °
Maximum Flow Rate6 Gal/minMaximum Operating Temperature+204 °C
Leak Rate164 @ 3500 PSI (240 BAR) cm3/min
