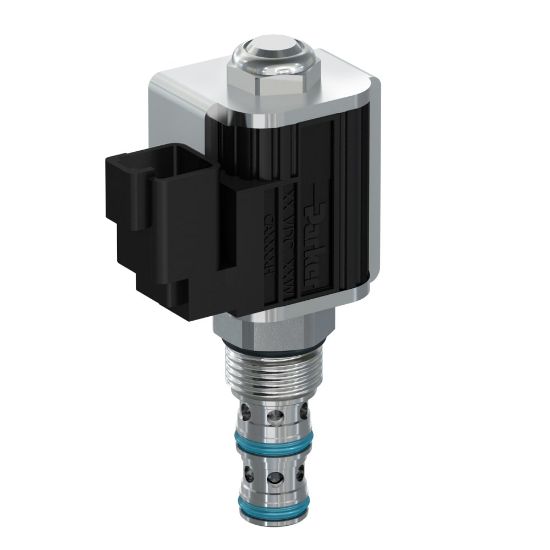

DSH103CT - 3 Way Solenoid Valves for High Pressure Hydraulic Applications

High pressure solenoid valves are direct acting 3-way, 2-position spool-type to cover a wide range of flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi). These screw-in cartridge valves are fast to respond to coil voltage.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSH103CT

$124.19/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Open
Flow Rate	8 GAL/MIN, 30 L/MIN	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring (Standard)	Actuation Type	Electrical, Manual
Flow Direction	3-1 De-energized, 2-1 Energized	Body Material	n/a
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-37 °C
Maximum Operating Temperature	+200 °F	Function	3-Way
Maximum Operating Pressure	350 bar	Maximum Flow Rate	30 L/min
Flow Rate	8 Gal/min	Maximum Inlet Pressure Rating	5000 psi
Seal Material	D-Ring (Standard)	Cavity Size	C10-3
Configuration	Normally Open	Actuation Type	Electrical, Manual
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Override Functionality	Push and Twist	Coil Nut Tightening Torque	7-10 Nm
Coil Type	5/8" Super Coil	Leak Rate	160 @ 5000 PSI (350 BAR) cm3/min
Installation Torque	51-55 lb-ft	Flow Direction	3-1 De-energized, 2-1 Energized
Weight	0.19 kg	Response Time	50-100 ms
