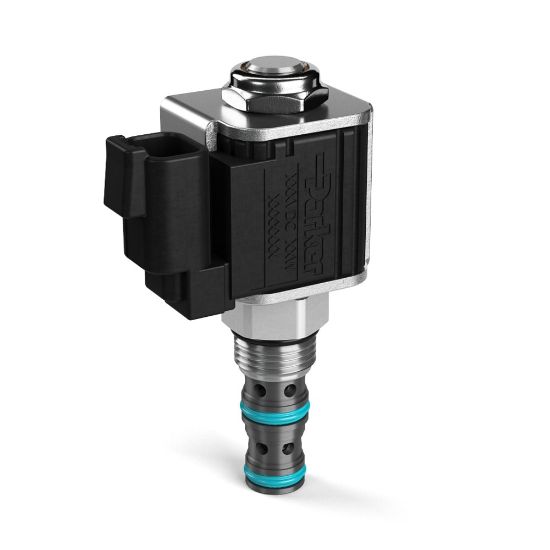

DSL083A - 3 Way Solenoid Valves for High Pressure Hydraulic Applications

High pressure solenoid valves are direct acting 3-way, 2-position spool-type to cover a wide range of flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi). These screw-in cartridge valves are fast to respond to coil voltage.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSL083A

$62.64/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Configuration	Normally Closed, Normally Open, Selector
Flow Direction	2-1 De-energized, 3-1 Energized	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
Flow Rate	2.25, 3.5 GAL/MIN, 8.4, 13.2 L/MIN	Actuation Type	Electrical
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-35 °F	Maximum Operating Temperature	+200 °F
Maximum Operating Pressure	3600 psi	Function	3-Way
Weight	0.13 kg	Override Functionality	n/a
Seal Material	D-Ring (Standard)	Operation Type	Solenoid Operated
Cavity Size	C08-3	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Mounting Type	Screw in cartridge valve	Coil Type	1/2" Super Coil
Configuration	Normally Closed, Normally Open, Selector	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Coil Nut Tightening Torque	7-10 Nm
Flow Direction	2-1 De-energized, 3-1 Energized	Installation Torque	31-37 Nm
Maximum Inlet Pressure Rating	250 bar	Flow Rate	8.4, 13.2 L/min
Leak Rate	120 @ 3600 PSI (250 BAR) cm3/min	Maximum Flow Rate	13.2 L/min
