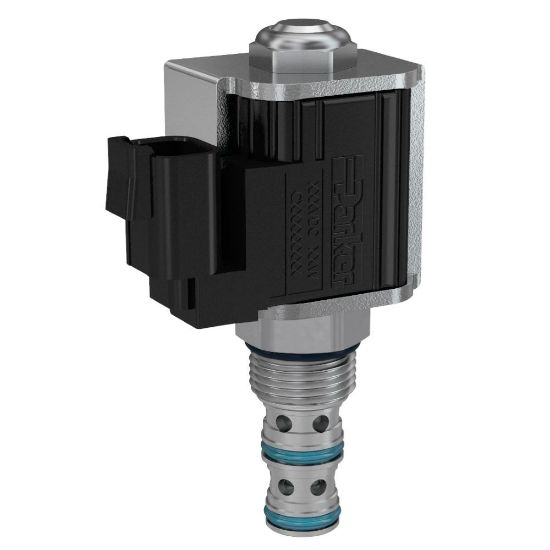

Picture of 3 Way Solenoid Valves for High Pressure Hydraulic Applications - DSL103B

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

3 Way Solenoid Valves for High Pressure Hydraulic Applications - DSL103B

High pressure solenoid valves are direct acting 3-way, 2-position spool-type to cover a wide range of flows up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi). These screw-in cartridge valves are fast to respond to coil voltage.
Availability:
101 in stock
Wichita, KS101
SKU DSL103B
$66.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAFlow Rate8 GAL/MIN, 30 L/MIN
Seal MaterialD-Ring (Standard)Actuation TypeElectrical
Flow Direction2-1 De-energized, 2-3 EnergizedConfigurationNormally Closed, Selector
Maximum Inlet Pressure Rating3600 PSI, 250 BARActuation TypeElectrical
Body Materialn/aDivisionHydraulic Systems Division
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-37 °C
Maximum Operating Pressure3600 psiFunction3-Way
Override Functionalityn/aMaximum Flow Rate30 L/min
Flow Rate8 Gal/minSeal MaterialD-Ring (Standard)
Operation TypeSolenoid OperatedCavity SizeC10-3
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4For Fluid TypeMineral-based or synthetic hydraulic fluids
Valve MaterialAll parts steel. All operating parts hardened steelMounting TypeScrew in cartridge valve
Maximum Operating Temperature+93 °COperating Temperature-35 to +200 °F
Input Voltage85% of rated voltage at 72°F (20°C) minCoil Nut Tightening Torque5-7 lb-ft
Flow Direction2-1 De-energized, 2-3 EnergizedCoil Type5/8" Super Coil
ConfigurationNormally Closed, SelectorWeight0.19 kg
Response Time50-100 msMaximum Inlet Pressure Rating250 bar
Leak Rate180 @ 3600 PSI (250 BAR) cm3/minInstallation Torque37-41 lb-ft
