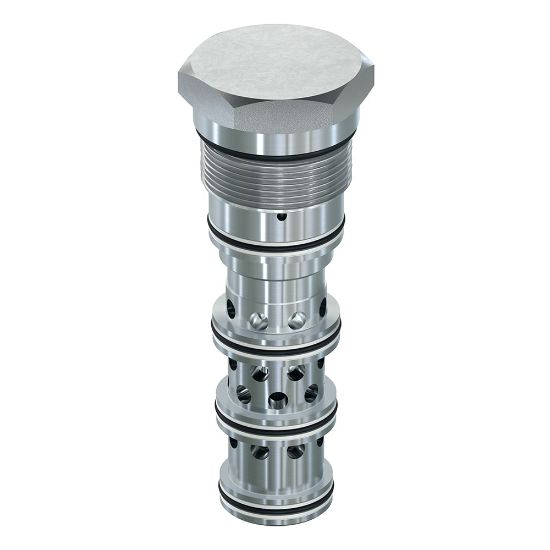

N5A300-10.0N - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU N5A300-10.0N

$329.94/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Direction	2-3 Neutral, 3-4 Piloted	Switching Pressure	145 PSI, 10 BAR
Configuration	Open Transition	Flow Rate	105 GAL/MIN, 400 L/MIN
Standard Flow Rate Setting	71 GAL/MIN, 270 L/MIN	Seal Material	Nitrile
Body Material	n/a	Maximum Operating Pressure	6000 psi
Operation Type	Pilot Operated	Pilot Location	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Weight	2.2 lb	Maximum Inlet Pressure Rating	6000 psi
Drain Option	External	Function	Diverter
Maximum Operating Temperature	+250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Flow Direction	2-3 Neutral, 3-4 Piloted	Flow Rate	105 Gal/min
Cavity Size	100-1	Configuration	Open Transition
Switching Pressure	10 bar	Actuation Type	Switching
Maximum Flow Rate	105 Gal/min	Leak Rate	400 @ 2900 PSI (200 BAR) cm3/min
Installation Torque	118 lb-ft	Standard Flow Rate Setting	71 Gal/min
