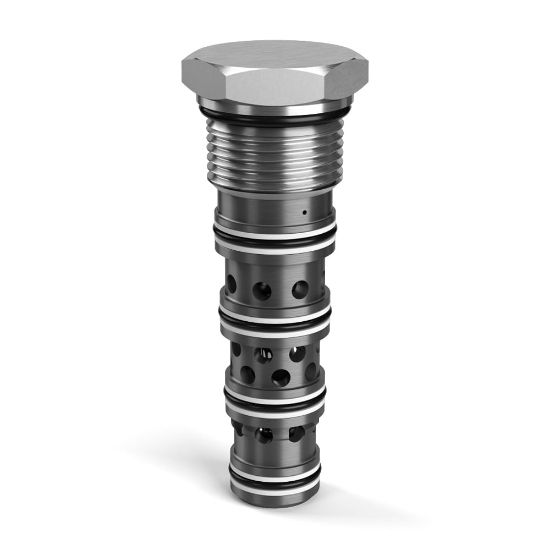

N5B125-10.0N - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU N5B125-10.0N

$196.70/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	42 GAL/MIN, 160 L/MIN	Flow Direction	2-3 Neutral, 3-4 Piloted
Switching Pressure	145 PSI, 10 BAR	Configuration	Closed Transition
Standard Flow Rate Setting	24 GAL/MIN, 90 L/MIN	Seal Material	Nitrile
Weight	0.33 kg	Body Material	n/a
Operation Type	Pilot Operated	Pilot Location	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Maximum Operating Pressure	420 bar	Maximum Inlet Pressure Rating	420 bar
Maximum Flow Rate	42 Gal/min	Drain Option	External
Function	Diverter	Maximum Operating Temperature	+250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Flow Direction	2-3 Neutral, 3-4 Piloted
Installation Torque	63 lb-ft	Cavity Size	5A
Switching Pressure	10 bar	Flow Rate	42 Gal/min
Actuation Type	Switching	Leak Rate	275 @ 2900 PSI (200 BAR) cm3/min
Configuration	Closed Transition	Standard Flow Rate Setting	24 Gal/min
