*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

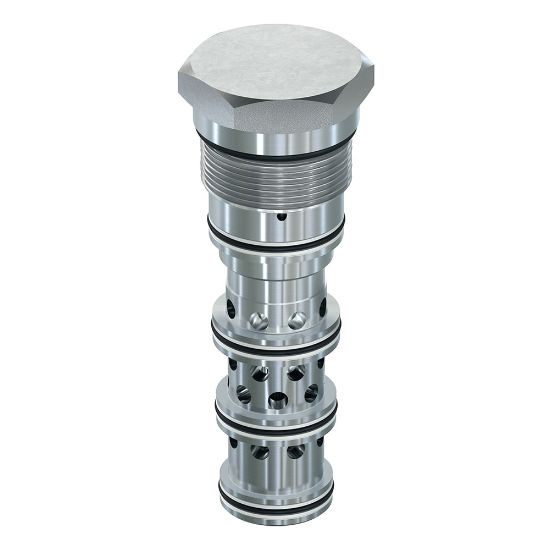

N5B300-3.0N - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU N5B300-3.0N

$435.69/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Direction	2-3 Neutral, 3-4 Piloted	Configuration	Closed Transition
Flow Rate	105 GAL/MIN, 400 L/MIN	Switching Pressure	44 PSI, 3 BAR
Standard Flow Rate Setting	71 GAL/MIN, 270 L/MIN	Seal Material	Nitrile
Body Material	n/a	Maximum Operating Pressure	6000 psi
Operation Type	Pilot Operated	Pilot Location	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-34 °C
Weight	2.2 lb	Maximum Inlet Pressure Rating	420 bar
Maximum Flow Rate	400 L/min	Drain Option	External
Function	Diverter	Maximum Operating Temperature	+250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Flow Direction	2-3 Neutral, 3-4 Piloted
Flow Rate	105 Gal/min	Cavity Size	100-1
Actuation Type	Switching	Leak Rate	400 @ 2900 PSI (200 BAR) cm3/min
Configuration	Closed Transition	Switching Pressure	3 bar
Installation Torque	160 Nm	Standard Flow Rate Setting	270 L/min
