| UOM | EA | Note | Thermowells are recommended for pressure, corrosive fluids and high velocity applications. |
| Application | - Used in almost every area of manufacturing, especially suited for applications in the following areas:
- Industrial process
- Petrochemical
- Food & beverage processing
- Commercial
- Wastewater
| Prop 65 Warnings |  WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Limitations Which Apply Are | These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.
In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice. | Warranty_yr | 1 |
| Related Items | 50-040-304-SS, 1/2" National Pipe Thread (NPT) Straight Shank, 4" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 304 Stainless Steel Thermowell 75-040-304-SS, 3/4" National Pipe Thread (NPT) Straight Shank, 4" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 304 Stainless Steel Thermowell 75-040-316-SS, 3/4" National Pipe Thread (NPT) Straight Shank, 4" Length, 1/2" National Pipe Straight Mechanical (NPSM) Instrument Connection, 316 Stainless Steel Thermowell | Process Connection Size | 1/2 |
| Accuracy | 1 | Options and Accessories | - 316 SS Wetted Parts, Available
- 6 mm Stem Diameter, Available
- 8 mm Stem Diameter, Available
- Acrylic Lens (PL)
- Safety Glass Lens (SG) available
- Certificate of Conformance
- Mounting Brackets - Consult Factory
- Stainless Steel Tagging (ST)
- Heavy-Duty Stem (0.375 in. Dia.) (HD) available
- Tempered Glass Lens
|
| Thermowells | Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument. | Bimetal Coil | Silicone coated helix coil on ranges below 500 ºF for vibration dampening, maximum heat transfer and response time |
| Hermetic Seal | Per American Society of Mechanical Engineers (ASME) B40.3 dustproof and leakproof | Accuracy Standard | American Society of Mechanical Engineers (ASME) B40.3 |
| Certified Calibration | <ul><li>Certified calibration provides the user with a serial numbered thermometer along with a calibration sheet against a primary temperature standard</li><li>Traceable to the National Institute of Standards and Technology</li></ul> | Case and Bezel Material | 304 Stainless Steel |
| Optional Wetted Parts Material | 316 Stainless Steel | Optional Case and Bezel Material | 316 Stainless Steel |
| Special Dials - Bimetal Thermometers | Special ranges and dials with company names, company logos, part numbers, telephone numbers, or almost any custom layout is available | Mounting Flanges - Bimetal Thermometers | Various sizes and types of mounting flanges are available |
| Limits Over Temperature at 50 Percentage_ºF | 250 to 500 | Limits Over Temperature at 100 Percentage_ºF | Up to 250 |
| Limits Over Temperature at Continuous Use Up to 800 ºF_ºF | 550 to 1,000 | Limits Over Temperature at Intermittent Use Over 800 ºF_ºF | 550 to 1,000 |
| Process Connection | 1/2" NPT | Series | 100 |
| Connection Type | National Pipe Thread (NPT) | Connection Size_in | 1/4 |

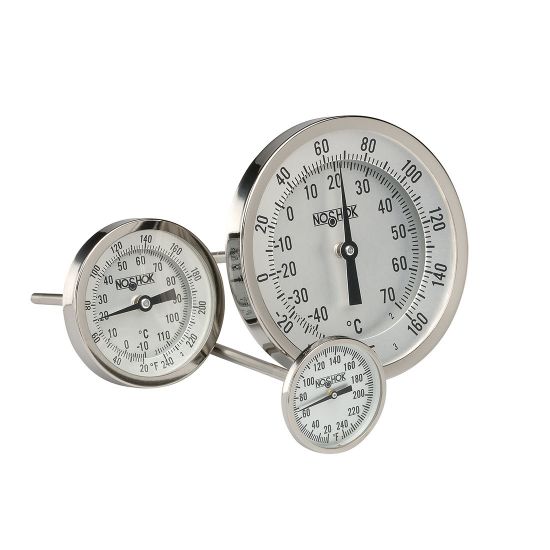

| Type | Bimetal Thermometer | Case Type | Back Connection |
| Process Connection Type | NPT | Dial | Anodized Aluminum with large black numbers and graduations |
| Lens | Instrument Glass | Accuracy Grade | A |
| Wetted Materials | 304 Stainless Steel | Temperature Scale | Dual |
| Temperature [Max]_ºF | 500 | Full Scale Accuracy (±)_% | 1 |
| Operating Temperature [Max]_ºF | 500 | Operating Temperature Max_ºF | 500 |
| Stem Diameters | 0.25 in, 6.35 mm | Stem Lengths_in | 4 |
| Stem Diameter_in | 0.25 | Stem Diameter_mm | 6.35 |
| Temperature [Min]_ºF | 50 | Operating Temperature [Min]_ºF | 50 |
| Operating Temperature Min_ºF | 50 | Pointer | Aluminum, Black Finished |
| Dial Size_in | 3 | | |
