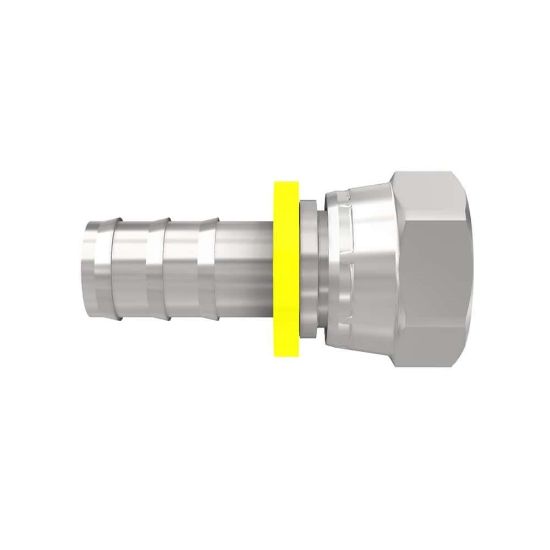

30682-8-10

Parker No-Skive 82 Series "Push-Lok®" Fittings are push-on, barb-style field-attachable hydraulic fittings that allow users to quickly and easily make hose assemblies right on the job site without special tools. When coupled with Parker’s No-Skive hoses, 82 series fittings deliver convenience and shorter assembly times, as no clamp is required. Reusable 82 Series fittings feature a one-piece construction for reduced complexity and less chance of leakage. Compatible with the Push-Lok family of multipurpose hoses, 82 series fittings can be used with high temperature, dry air, hot water, fire-resistant, and higher pressure hoses. Offered in a wide range of end configurations and in sizes ranging from ¼” to 1”, 82 Series fittings are available in brass or steel with zinc dichromate plating. Applications include pneumatics, petroleum-base fluids, antifreeze, diesel, and phosphate ester.

Features/Benefits:

Can be assembled in field with wrenches

Imperial HEX

Wide range of end configurations

One piece reduces complexity and leakage path

No-Skive technology offers easy, efficient, and safe production processes

Applications:

Petroleum base hydraulic fluids and lubricating oils

Pneumatic

Antifreeze solutions

Diesel fuels

Phosphate ester

Dry air and water

Compatible Hoses:

801

804

821

821FR

836

Markets:

Construction | Utility Equipment | Machine Tool | Ground Support Equipment | Industrial | Automotive
