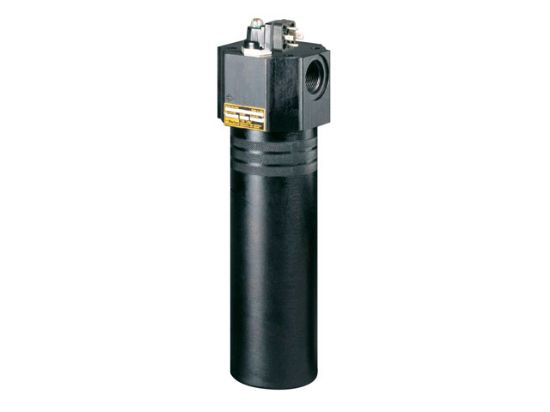

30P Series High Pressure Filter - 30P102QBPKS161

Name: 30P Series High Pressure Filter - 30P102QBPKS161
SKU: 30P102QBPKS161

30P Series Hydraulic and Lube Oil High Pressure Filter

Availability:

Backordered

SKU 30P102QBPKS161

$666.52

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Seals	Nitrile
Nominal Filter Rating	2 micron	Options	No Option
Port	16 SAE	Indicator Type	Plugged Indicator
Bypass	50 PSI (3.5 bar)	Max Pressure - Non-Fatigue MAOP	3000 psi (206.9 bar)
Max Pressure - Fatigue MAOP	2000 psi (138 bar)	Nominal Flow Rating	20 GPM (76 LPM)
Replacement Element	932622Q	Parker Group	Filtration
Parker Division	Hydraulic Filter	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Port Type	SAE
Seals	Nitrile	Nominal Filter Micron Rating	2 micron
Options	No Option	Port	16 SAE
Indicator Type	Plugged Indicator	Bypass	50 PSI (3.5 bar)
Filter Media Code	02Q	Filter Type	High Pressure Filter
Filter Media Type	Microglass III	Max Pressure - Non-Fatigue MAOP	3000 PSI (206.9 bar)
Max Pressure - Fatigue MAOP	2000 PSI (138 bar)	Series	30P
Nominal Flow Rating	20 GPM (76 LPM)

Product resources

15P/30P Series (PDF)
