3.25CJ4MA3U14AC20.00

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 3.25CJ4MA3U14AC20.00

$578.94/each

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Clear Anodized Aluminum Alloy
Series	4MA	Style	Tie Rod, NFPA
Port Size	1/2 Inch	Stroke Length	20 Inch
Lube Specification	Non Lube Design	Corrosion Resistant	Yes
Filtration Required	40 micron	Piston Material	Aluminum
Mounting Style Description	Head Rectangular Flange	Rod End Thread	3/4-16
Filter Media	Filtered Air	Rod Material	Case Hardened, Chrome-Plated Carbon Steel
End Type	Single Rod	Mounting Style	MF1
Port Type	NPTF	Cushions	Cushioned, Both Ends
Piston No.	1	Min. Temperature Range	-10 °F
Bore Size	3 1/4 Inch	Seal Material	Nitrile
Max. Temperature Range	165 °F	Mounting Style Code	J
Seal Type	Lipseal	Max. Pressure	250 psig
Rod End Style	Male, Small	Bumpers	w/o Bumpers
Magnetic Ring	Yes	Rod Diameter	1 Inch
Rod Thread Type	UNF

Customers who bought this item also bought

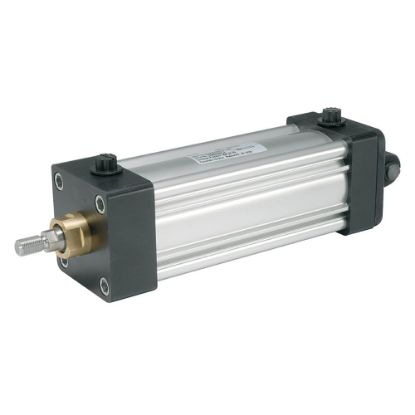

2.00CJ4MA3U14AC24.00
