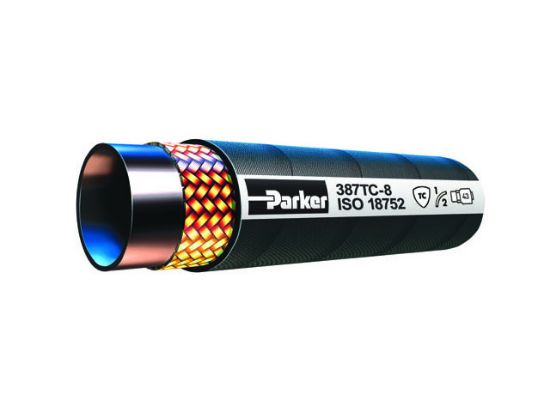

387-4-RL - 387 Series

Name: 387-4-RL - 387 Series
SKU: 387-4-RL
Price: 4.47 USD
Availability: InStock

Medium Constant Pressure 3000 PSI Hydraulic Hose

Availability:

880 in stock

Wichita, KS	863
Kansas City, KS	16

Partner Available:

10201 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 387-4-RL

$4.47/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Inner Diameter	0.25 Inch
Material	Rubber	Working Pressure	3,000 psi (21 MPa)
Mating Fitting Series	43	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	0.25 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber	Working Pressure Range	3000 to 3999 PSI (207 to 276 bar)
Application	Hydraulic	Hose Pressure Range	Medium
Hose Category	Hydraulic Industry Standard	Series	387
Operating Temperature	-40°F to +212°F (-40°C to +100°C)	Trade Name	GlobalCore
Mating End Fitting Series	43	Distinct Properties	Constant Pressure 3000 PSI
Specification	ISO 18752	ISO 18752 Performance	AC
Working Pressure	3,000 psi (21 MPa)	Minimum Bend Radius	2 Inch
