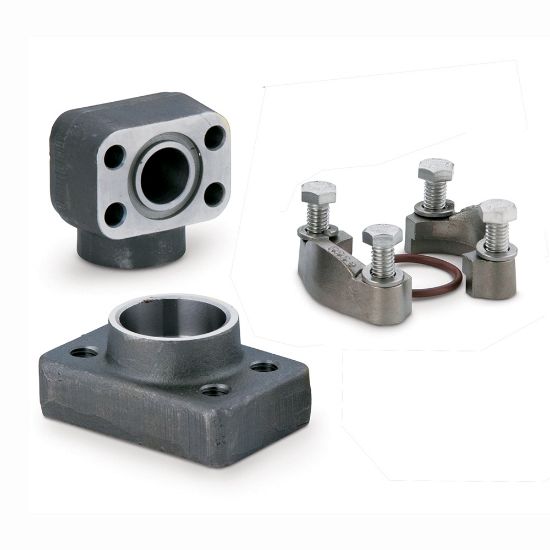

20-16B3HQ1NSX - 4-Bolt Hydraulic Flanges and Components

Parker's 4-bolt hydraulic flanges and components are proven leak-free connections, especially suited for larger sizes, higher pressures and assembly in tight quarters.

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU 20-16B3HQ1NSX

$26.96/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Flange	Code 61	Flange Size (inch)	1
Connection Style	Braze Flange Head Connector	Connection 1 Style	Tube Braze Socket
Connection Pipe O.D. (inch)	na	Connection Thread Size (inch)	na
Face Style	Flat Face	Connection Tube O.D. (inch)	1 1/4
Maximum Dynamic Pressure	4000 psi	Includes	n/a
Flange Size	Code 61	O-Ring Material	n/a
Specifications Met	ISO 6162-1

Product resources

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300 (PDF)
