4-Bolt Hydraulic Flanges and Components
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's hydraulic flanges and components conform to SAE J518 and ISO 6162-1 and -2. These proven leak-free connections are suited for tube and pipe in larger sizes, and have achieved world-wide acceptance.
Markets:
• Construction
• Agriculture
• Oil & Gas
• Transportation
• Mining
• Forestry
Features/Benefits:
• Adapts BSPP, SAE Straight thread and NPTF, as well as tube and pipe weld connections.
• Lower tightening torque required compared to that required for equivalent size threaded port, therefore smaller wrenches and wrench swing clearances needed--providing ease of assembly in tight quarters.
• Ease of disassembly with use of split clamps.
• Over 60 configurations available, with custom designs available on request.
• Available in steel and stainless steel in flange sizes ½” through 3” with working pressures up to 6000 psi.
Applications:
• Hydraulic fluid and gas handling connections
Read More...Markets:
• Construction
• Agriculture
• Oil & Gas
• Transportation
• Mining
• Forestry
Features/Benefits:
• Adapts BSPP, SAE Straight thread and NPTF, as well as tube and pipe weld connections.
• Lower tightening torque required compared to that required for equivalent size threaded port, therefore smaller wrenches and wrench swing clearances needed--providing ease of assembly in tight quarters.
• Ease of disassembly with use of split clamps.
• Over 60 configurations available, with custom designs available on request.
• Available in steel and stainless steel in flange sizes ½” through 3” with working pressures up to 6000 psi.
Applications:
• Hydraulic fluid and gas handling connections
| Action | SKU | Availability | Partner Available | Price | UOM | Body Material | Flange | Flange Size (inch) | Face Style | Connection 1 Style | Connection Pipe O.D. (inch) | Connection Tube O.D. (inch) | Connection Thread Size (inch) | Connection Style | Maximum Dynamic Pressure | Flange Size | O-Ring Material | Specifications Met | Includes | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16PQ1BSXK | Backordered | Backordered | $82.37/each | EA | Steel | Code 61 | 1 | O-Ring Face | na | na | na | na | Block Plug Kit | 5000 psi | Code 61 | 90 Durometer | ISO 6162-1 | Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring. | ||
| 16PQ1NSX | 2 Limited Stock | 4 in stock | $16.26/each | EA | Steel | Code 61 | 1 | Flat Face | na | na | na | na | Flange Head Plug | 5000 psi | Code 61 | n/a | ISO 6162-1 | n/a | ||
| 16PQ1PSS | Backordered | Backordered | $411.07/each | EA | Stainless Steel | Code 61 | 1 | Flat Face | na | na | na | na | Block Plug | 5000 | Code 61 | n/a | ISO 6162-1 | n/a | ||
| 16PQ1PSX | Backordered | Backordered | $70.70/each | EA | Steel | Code 61 | 1 | Flat Face | na | na | na | na | Block Plug | 5000 | Code 61 | n/a | ISO 6162-1 | n/a | ||
| 16PQ1PSXK | Backordered | Backordered | $164.77/each | EA | Steel | Code 61 | 1 | Flat Face | na | na | na | na | Block Plug Kit | 5000 | Code 61 | n/a | ISO 6162-1 | Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring. | ||
| 16PQ1SX | 1 Limited Stock | 141 in stock | $16.26/each | EA | Steel | Code 61 | 1 | O-Ring Face | na | na | na | na | Flange Head Plug | 5000 psi | Code 61 | Nitrile | ISO 6162-1 | n/a | 0.6232014388489209 lb | |
| 16PQ2BSX | Backordered | Backordered | $103.07/each | EA | Steel | Code 62 | 1 | O-Ring Face | na | na | na | na | Block Plug | 6000 psi | Code 62 | 90 Durometer | ISO 6162-2 | n/a | ||
| 16PQ2BSXK | Backordered | Backordered | $134.05/each | EA | Steel | Code 62 | 1 | O-Ring Face | na | na | na | na | Block Plug Kit | 6000 psi | Code 62 | Nitrile | ISO 6162-2 | Kit Includes 4 Bolts, 4 Locks Washers and an O-Ring. | ||
| 16PQ2NSX | 2 Limited Stock | 2 Limited Stock | $30.93/each | EA | Steel | Code 62 | 1 | Flat Face | na | na | na | na | Flange Head Plug | 6000 psi | Code 62 | n/a | SAE J518 | n/a | ||
| 16PQ2PSX | Backordered | Backordered | $103.07/each | EA | Steel | Code 62 | 1 | Flat Face | na | na | na | na | Block Plug | 6000 | Code 62 | n/a | ISO 6162-2 | n/a | ||
| 16PQ2SX | 1 Limited Stock | 50 in stock | $30.93/each | EA | Steel | Code 62 | 1 | O-Ring Face | na | na | na | na | Flange Head Plug | 6000 psi | Code 62 | Nitrile | SAE J518 | n/a | 0.12464028776978417 lb | |

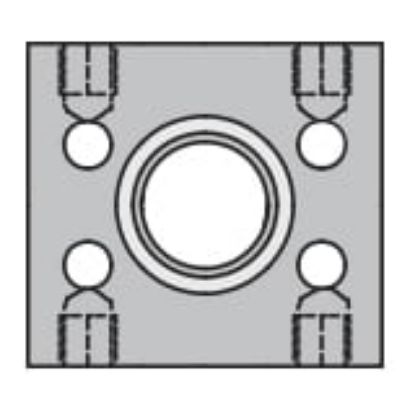

| 16Q1PQ1PJQ1PSX | Backordered | Backordered | $613.79/each | EA | Steel | Code 61 | 1 | Flat Face | na | na | na | na | Block Junction Tee | 5000 | Code 61 | n/a | ISO 6162-1 | n/a | ||
| 16Q2PQ2PJQ2BSX | Backordered | Backordered | $1,329.63/each | EA | Steel | Code 62 | 1 | O-Ring Face | na | na | na | na | Block Junction Tee | 6000 psi | Code 62 | Nitrile | ISO 6162-2 | n/a | ||
| 16SPGG5Q1BSX | Backordered | 5 in stock | $143.16/each | EA | Steel | Code 61 | 1 | na | na | na | na | na | Flange Spacer with Gage Ports | 5000 psi | Code 61 | n/a | ISO 6162-1 | n/a | ||
| 16SPGG5Q2BSX | Backordered | Backordered | $148.71/each | EA | Steel | Code 62 | 1 | na | na | na | na | na | Flange Spacer with Gage Ports | 6000 psi | Code 62 | n/a | SAE J518 | n/a | ||

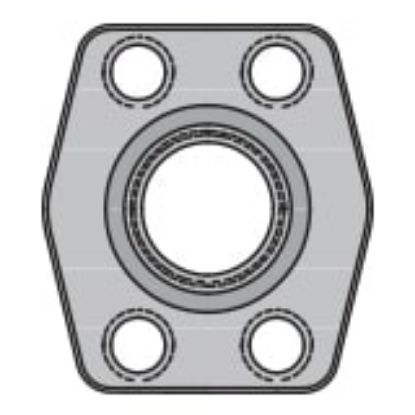

| 16W4Q1BSX | Backordered | Backordered | $73.13/each | EA | Steel | Code 61 | 1 | O-Ring Face | na | na | 1 | na | Flat Weld Socket Block | 5000 psi | Code 61 | Nitrile | SAE J518 | n/a | ||
| 16W4Q1PSX | Backordered | Backordered | $77.39/each | EA | Steel | Code 61 | 1 | Flat Face | na | na | 1 | na | Flat Weld Socket Block | 5000 | Code 61 | n/a | ISO 6162-1 | n/a | ||
| 16W6EQ1BSXK | Backordered | Backordered | $144.41/each | EA | Steel | Code 61 | 1 | O-Ring Face | Tube Weld Socket | na | 1 | na | Weld Socket Block Elbow | 5000 psi | Code 61 | Nitrile | ISO 6162-1 | n/a | ||
| 16W6Q1PSX | Backordered | Backordered | $60.70/each | EA | Steel | Code 61 | 1 | Flat Face | Tube Deep Weld Socket | na | 1 | na | Deep Weld Socket Block | 5000 | Code 61 | n/a | ISO 6162-1 | n/a | ||
| 16W7EQ1BSX | Backordered | Backordered | $134.50/each | EA | Steel | Code 61 | 1 | O-Ring Face | Pipe Weld Socket | 1 | na | na | Weld Socket Block Elbow | 4500 psi | Code 61 | Nitrile | ISO 6162-1 | n/a |
