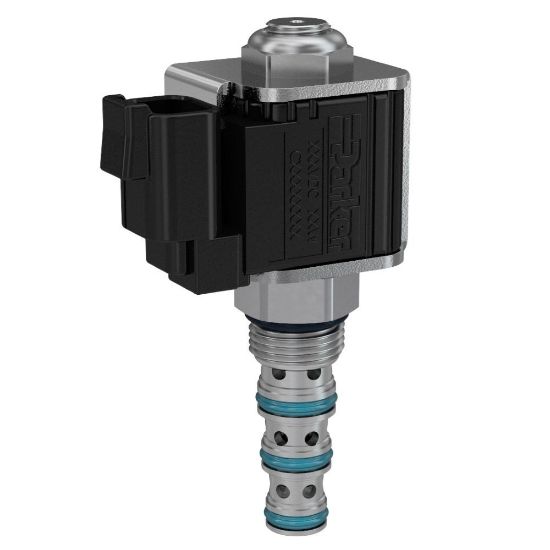

4 Way 2 Position Spool Type Solenoid Valve - DSH084BT

Name: 4 Way 2 Position Spool Type Solenoid Valve - DSH084BT
SKU: DSH084BT

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:

Backordered

SKU DSH084BT

$123.54

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring (Standard)	Actuation Type	Electrical, Manual
Flow Rate	4 GAL/MIN, 15 L/MIN	Configuration	N/A
Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-35 °F
Configuration	n/a	Maximum Inlet Pressure Rating	5000 psi
Flow Rate	4 Gal/min	Seal Material	D-Ring (Standard)
Cavity Size	C08-4	Function	4-Way
Weight	0.29 lb	Actuation Type	Electrical, Manual
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Mounting Type	Screw in cartridge valve	Maximum Operating Temperature	+93 °C
Operating Temperature	-35 to +200 °F	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Installation Torque	32-36 lb-ft	Override Functionality	Push and Twist
Coil Nut Tightening Torque	7-10 Nm	Maximum Flow Rate	4 Gal/min
Leak Rate	240 @ 5000 PSI (350 BAR) cm3/min	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
