*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

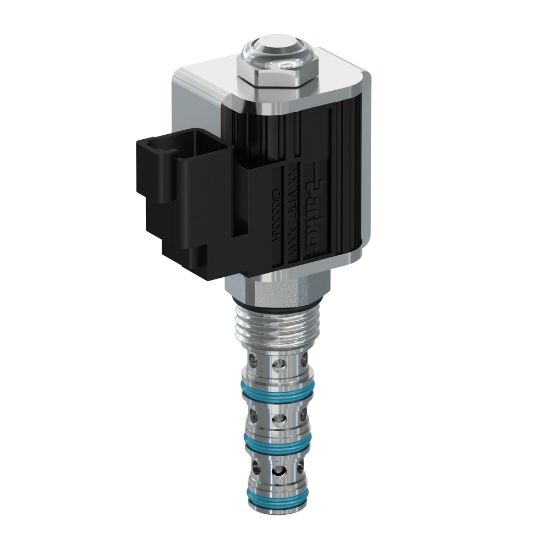

DSH104B - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Backordered Estimated Lead Time: 64 days
Partner Available:	31 in stock

SKU DSH104B

$119.61/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring (Standard)	Flow Rate	10 GAL/MIN, 38 L/MIN
Actuation Type	Electrical	Configuration	N/A
Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized	Actuation Type	Electrical
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-35 °F	Configuration	n/a
Maximum Operating Temperature	+200 °F	Override Functionality	n/a
Maximum Operating Pressure	350 bar	Weight	0.2 kg
Maximum Inlet Pressure Rating	350 bar	Flow Rate	10 Gal/min
Seal Material	D-Ring (Standard)	Operation Type	Solenoid Operated
Cavity Size	C10-4	Maximum Flow Rate	10 Gal/min
Function	4-Way	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque	5-7 lb-ft	Coil Type	5/8" Super Coil
Installation Torque	69-75 Nm	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
Leak Rate	320 @ 5000 PSI (350 BAR) cm3/min	Response Time	30-60 ms
