*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

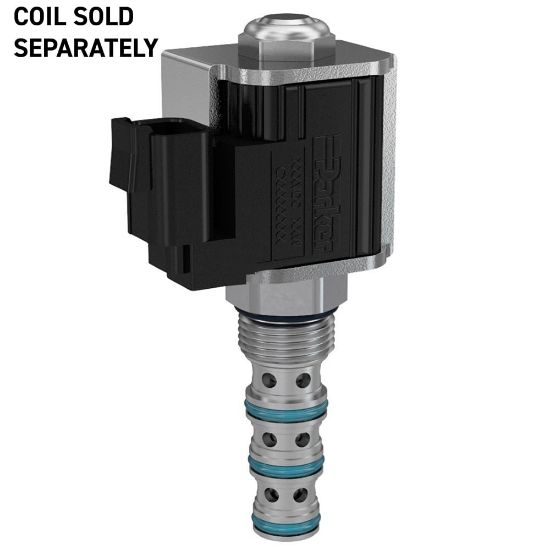

DSH104E4 - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU DSH104E4

$101.36/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring (Standard)	Actuation Type	Electrical
Configuration	N/A	Flow Rate	6.5 GAL/MIN, 25 L/MIN
Flow Direction	3 blocked, 2-4-1 De-Energized, 2-1, 3 and 4 blocked Energized	Actuation Type	Electrical
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-35 °F	Configuration	n/a
Override Functionality	n/a	Maximum Operating Pressure	350 bar
Weight	0.44 lb	Maximum Inlet Pressure Rating	350 bar
Seal Material	D-Ring (Standard)	Operation Type	Solenoid Operated
Cavity Size	C10-4	Function	4-Way
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Mounting Type	Screw in cartridge valve
Maximum Operating Temperature	+93 °C	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque	5-7 lb-ft	Coil Type	5/8" Super Coil
Leak Rate	160 @ 5000 PSI (350 BAR) cm3/min	Installation Torque	69-75 Nm
Flow Rate	25 L/min	Response Time	30-60 ms
Flow Direction	3 blocked, 2-4-1 De-Energized, 2-1, 3-4 Energized	Maximum Flow Rate	6.5 Gal/min
