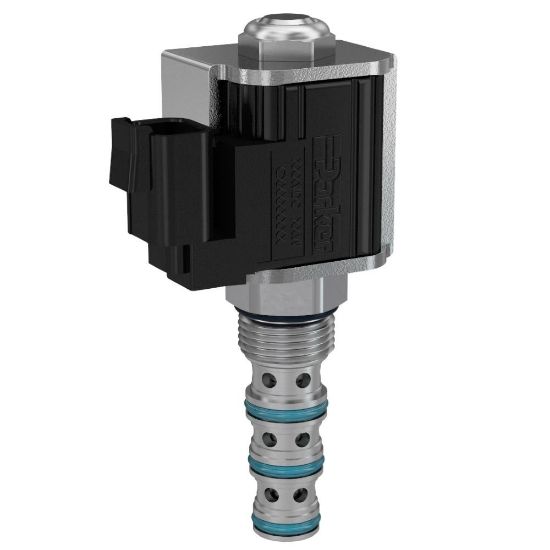

DSL104B - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	125 in stock

SKU DSL104B

$106.73/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Flow Rate	10 GAL/MIN, 38 L/MIN	Actuation Type	Electrical
Configuration	N/A	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Actuation Type	Electrical
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-35 °F	Configuration	n/a
Maximum Operating Temperature	+200 °F	Override Functionality	n/a
Weight	0.2 kg	Maximum Operating Pressure	250 bar
Flow Rate	10 Gal/min	Seal Material	D-Ring (Standard)
Operation Type	Solenoid Operated	Cavity Size	C10-4
Maximum Flow Rate	10 Gal/min	Function	4-Way
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Mounting Type	Screw in cartridge valve
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Nut Tightening Torque	7-10 Nm
Coil Type	5/8" Super Coil	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
Response Time	30-60 ms	Maximum Inlet Pressure Rating	3600 psi
Installation Torque	50-56 Nm	Leak Rate	230 @ 3600 PSI (250 BAR) cm3/min
