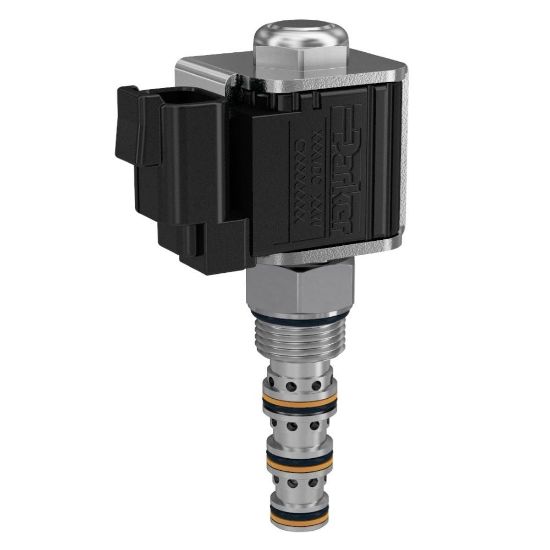

GS024210V - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU GS024210V

$240.64/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	5 GAL/MIN, 19 L/MIN
Actuation Type	Electrical, Manual	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
Configuration	Reversing Spool	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5000 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-26 °C
Maximum Flow Rate	19 L/min	Flow Rate	19 L/min
Maximum Inlet Pressure Rating	5000 psi	Installation Torque	30 Nm
Coil Nut Tightening Torque	4.1 Nm	Weight	0.3 kg
Cavity Size	C08-4	Function	4-Way
Actuation Type	Electrical, Manual	Maximum Operating Temperature	+204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Mounting Type	Screw in cartridge valve	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized	Override Functionality	Non-Detented
Leak Rate	150 @ 5000 PSI (350 BAR) cm3/min	Configuration	Reversing Spool
